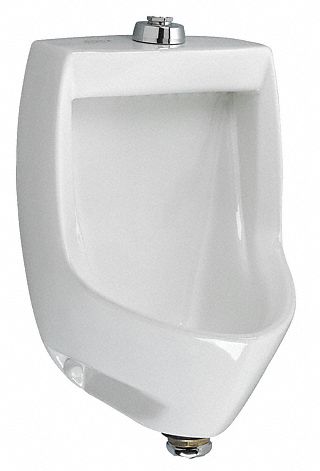

American Standard 6581001EC.020 Washdown Urinal, 0.5 gpf_0.1 gpf_0.13 gpf Gallons per Flush, Vitreous China, Wall

American Standard 6581001EC.020 Washdown Urinal, 0.5 gpf_0.1 gpf_0.13 gpf Gallons per Flush, Vitreous China, Wall

UPC: 791556083820 | Harmonization / Schedule B : 6910.10.0050

Country of Origin: Mexico | Shipping Weight: 42.0 lbs

$339.11 - $339.11
$339.11
$339.11 - $339.11
$339.11

This high-efficiency urinal uses just 0.125 gallons per flush, which is 87% less than a standard 1.0 GPF urinal. Features include a flushing rim and a washout flush action for effectiveness and EverClean surface that stays cleaner, longer.. This compact, low-consumption model is ideal for commercial applications where reducing water consumption is a priority. Product Overview •High Efficiency Urinal (HEU) operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf) •EverClean Antimicrobial Surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface •Flushing rim •Powerful washdown action •Integral strainer •3/4" (19 mm) inlet spud •Outlet spud with 1-1/2" (38 mm) tubing tailpiece •Wall hanger included •Fixture only •Operates in the range of 0.125 gpf – 1.0 gpf (0.47 Lpf – 3.8 Lpf) •EverClean Antimicrobial Surface

Height (In.) 18
Depth (In.) 12-3/4
Width (In.) 12-3/4
Spud Connection Size 3/4 in
Manufacturers Warranty Length 1 yr
Brand and Series American Standard Maybrook
Urinal Mounting Style Wall
Spud Location Top
Gallons per Flush 0.1 gpf, 0.13 gpf, 0.5 gpf
ADA Compliance No
Flush Handle Not Included
Green Certification or Other Recognition WaterSense Certified and California Energy Commission (CEC) Certified
Cartridges Required No
Color/Finish White
Material of Construction Vitreous China
Connection (In.) 3/4
Mounting Style Wall
Green Environmental Attribute Urinal Uses 0.5 gpf or Less
Includes EverClean(R) Antimicrobial Surface Coating, Inhibits the Growth of Stain and Odor Causing Bacteria On the Surface, Mold and Mildew, Strainer and Outlet, Ultra High Efficiency, Wall Hangers
Standards ASME A112.19.2/CSA B45.1
Type Washout
Flushing Method Flushometer
Color White
Tank/Flush Valve Mfr. Model Number 6045013.002, 6045051.002, 6045101.002, 6063013.002, 6063051.002, 6063101.002
Product Type Washdown Urinal
Series Maybrook
Compatible Tank/Flush Valve Manufacturer Part Number 6045013.002, 6045051.002, 6045101.002, 6063013.002, 6063051.002, 6063101.002
ADA Compliant Not ADA Compliant
Country of Origin Mexico
