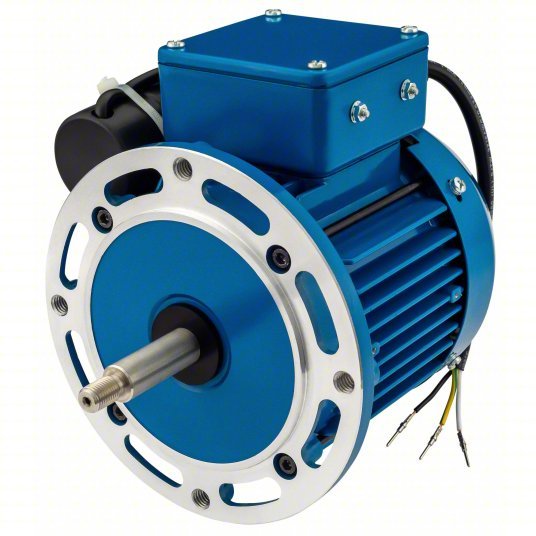

American Stainless M1.0T11G-JH1 Motor, 1 HP, 3,420 rpm, 56J, 115/230V

UPC: 462762911879 | Harmonization (Schedule B): 8501.40.5040

SKU KV60PY17
Original price $728.89 - Original price $728.89
Original price
$728.89
$728.89 - $728.89
Current price $728.89
Pump Motor, Bearing Protection Water Slingers, Body Dia. 5.5 in, Bolt Circle Dia. 5 7/8 in, Conduit Box Location Exterior, Conduit Box Position F3, Duty Cycle Continuous, Finish Powder Coated, For Pump Number FDP1AH, FDP2AH, FDP3AH, Frame 56J, Hz 60, Full Load Amps 9.6/4.8 A, Height 7 3/4 in, HP 1, Ins. Class F, Inverter Rated No, Length Less Shaft 6 1/2 in, Manufacturers Warranty Length 1 yr, Max. Ambient Temp. 40 Degrees C, Max. SF Amps 9.3/4.8 A, Motor Application Pump, Motor Bearings Ball
Voltage 230V AC
Weight 17 lb
Motor Frame Material Cast Aluminum
Motor Application Pump
Conduit Box Position F3
Motor Sub Application Vertical Pump
Standards CSA (C22.2 No 77), CSA (C22.2 No. 100), UL (1004-1), UL (1004-3)
For Pump Number FDP1AH, FDP2AH, FDP3AH
No. of Speeds 1
Full Load Amps 9.6/4.8 A
Part Winding Start Capable No
Motor Enclosure Design Totally Enclosed Fan-Cooled
Hz 60
Ins. Class F
Shaft Material 303 Stainless Steel
Max. SF Amps 9.3/4.8 A
Usable @ 200V No
Finish Powder Coated
Overload Relay Required No
Motor Mounting Type Face
Conduit Box Location Exterior
RPM Range 3,001-3,600
Motor Shaft Rotation CCW
Motor Shaft Design Threaded
Bearing Protection Water Slingers
HP 1
Motor Thermal Protection Auto
Frame 56J
Motor Bearings Ball
Max. Ambient Temp. 40 Degrees C
Motor Service Factor 1.2
Number of Wires 3
Nominal Efficiency 74.1 %
Motor Design Permanent Split Capacitor
Duty Cycle Continuous
Inverter Rated No
Nameplate RPM 3,420
Motor Mounting Position Horizontal; Vertical Shaft Down
Regreasable Bearings Permanently Lubricated Bearings
Phase Single
Voltage Compatibility 115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Usable @ 208V No
