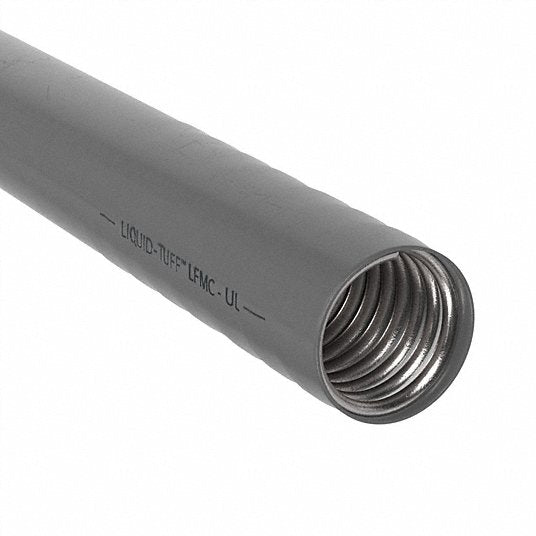

Allied 6207-24-00 Liquid-Tight Conduit, 2 In x 50 ft, Gray

by AFC

Liquid-Tight Flex Metal Conduit, Trade Size 2 in, Bend Radius 5 in, Color Gray, Approval Rating ANSI, CSA, UL, Steel, Jacket Material Flame Retardant PVC, Max. Operating Temp. 176 Degrees F, Min. Operating Temp. -30 Degrees F, Nominal Length 50 ft, Finish Galvanized, Flammability Rating UL 360, Flexibility Flexible, Indoor/Outdoor Usage Outdoor Only, Inside Diameter 2.02 in, Jacket Color Gray, Jacketed Yes, Liquid Tight Conduit Application Metallic, Outside Diameter 2.34 in

Item Liquid-Tight Flex Metal Conduit
Series 6200
Flexible Conduit Usable Temp. Range -30 Degrees to 176 Degrees F
Standards UL ANSI
Liquid Tight Conduit Application Metallic, General Purpose
Conduit Material Steel
Material Steel
Flexible Conduit Color Gray
Flexible Conduit Core Material Hot Dipped Galvanized Steel
Special Features The 1-1/2 through 4-inch trade sizes are designed with a fully interlocked strip, The 3/8 through 1-1/4 inch trade sizes are Square Lock formed and include an integral bonding strip of copper that is enclosed within the convolutions throughout their entire length
Jacket Material Plastic
Indoor/Outdoor Usage Outdoor Only
Wet Location Yes
Jacket Color Gray
Max. Operating Temp. 176 Degrees F
Finish Galvanized
Color Gray
Resistance Properties Oil Resistant, UV Resistant
Usable Temperature Range -30 Degrees F to 176 Degrees F
Jacketed Yes
Approval Rating ANSI, CSA, UL
Flammability Rating UL 360
Special Properties Oil Resistant
Flexibility Flexible
Min. Operating Temp. -30 Degrees F
Package Quantity 1
