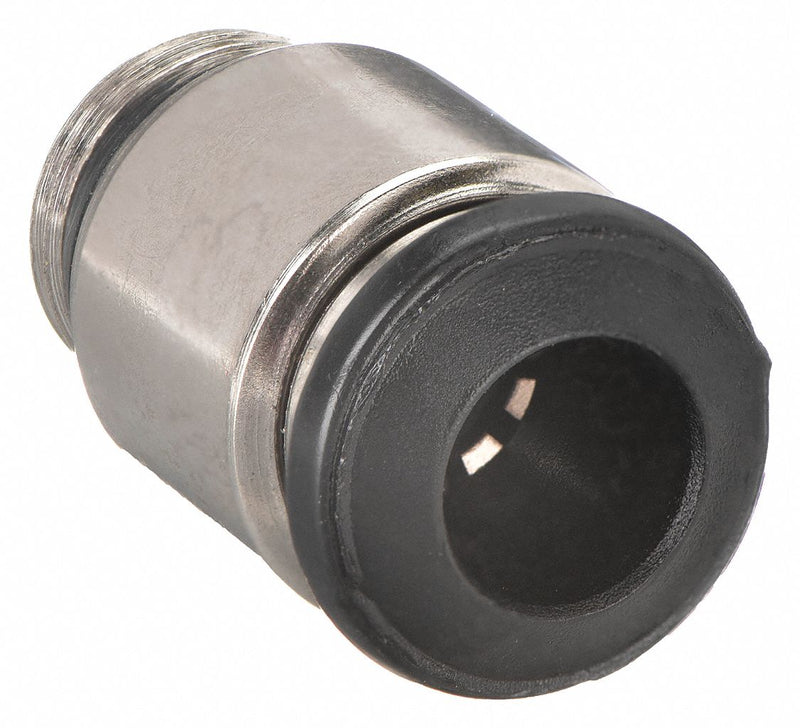

AIGNEP USA 50010N-8-1/4-PK5 Push-Fit Adapter Fitting, 8 mm OD x 1/4 in Pipe Size, Brass, 7/8 in Overall Lg, 5 PK

AIGNEP USA 50010N-8-1/4-PK5 Push-Fit Adapter Fitting, 8 mm OD x 1/4 in Pipe Size, Brass, 7/8 in Overall Lg, 5 PK

UPC: | Harmonization / Schedule B : 7412.20.0045

Country of Origin: United States | Shipping Weight: 0.12 lbs

$36.41 - $36.41
$36.41
$36.41 - $36.41
$36.41

Push-Fit Adapter Fitting, Application Vacuum, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Universal, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 8 mm, Fitting Material Brass, Color Silver, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included, Maximum Operating Pressure 290 psi, Maximum Operating Temperature 160 Degrees F, Overall Length 7/8 in, Specific Fitting Shape Straight Adapter.

Tube Size 8mm
Pipe Size 1/4 in
Overall Length 7/8 in
Fitting Side A Tube Outer Diameter 8 mm
Fitting Side B Pipe Size 1/4 in
Fitting Side 1 Tube Outer Diameter 8 mm
Fitting Side 2 Pipe Size 1/4 in
Material Metal
Max. Pressure 290 psi
Connection Type Push-to-Connect x Universal
Application Vacuum
Standards ISO 14743:2004, PED 2014/68/UE, 1907/2006 REACH, RoHS 2011/65/CE, Silicone Free Certified
Temp. Range 0 Degrees to 160 Degrees F
Specific Pipe Fitting Shape Adapter
Fitting Shape Straight
Gasket Material Rubber
Pipe Fitting Connection Type MNPT x Tube
Basic Pipe Fitting Material Metal
Tube Fitting Material Brass
Basic Pipe Fitting Shape Adapter
Special Features Universal Thread System Compatible with Inch and Metric Threads
Body Material Nickel Plated Brass
Fittings Sub-Category Adapters
Color Silver
Minimum Operating Temperature 0 Degrees F
Fitting Side B Connection Type Universal
Fitting Side A Connection Type Push-to-Connect
Fitting Material Brass
Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Included
Release Ring Material Rubber
Thread Sealant Type NBR 70
Maximum Operating Temperature 160 Degrees F
Maximum Operating Pressure 290 psi
Compatible Tube Material FEP, Polyamide 11, Polyamide 12, Polyamide 6, Polyethylene, Polyurethane, PTFE
Finish/Coating Nickel Plated
System of Measurement Imperial/Metric
Operating Pressure - Maximum 290 psi
Fitting Side 1 Connection Type Push-to-Connect
Finish Nickel-Plated
Operating Temperature - Minimum 0 Degrees F
Connector Type Adapter
For Media Type Air
Fitting Side 2 Connection Type Universal Thread
Operating Temperature - Maximum 160 Degrees F
Country of Origin United States
