AFC 6103-24-00 Liquid-Tight Flex Metal Conduit 3/4 in Trade Size, Gray, 2 1/2 in Bend Radius, 50 ft Nominal Lg - KVM Tools Inc.KV4JC60

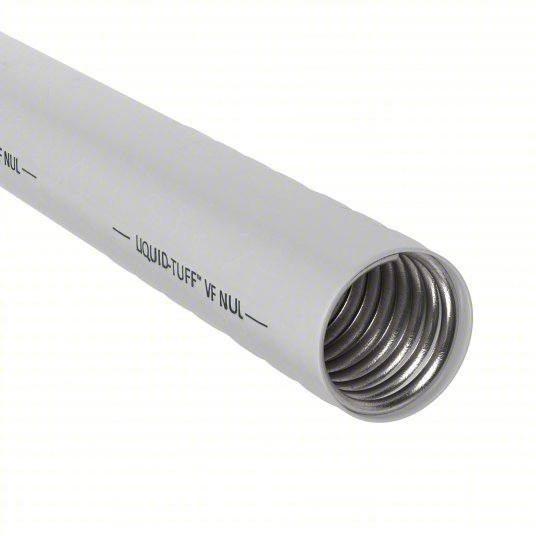

AFC 6103-24-00 Liquid-Tight Flex Metal Conduit 3/4 in Trade Size, Gray, 2 1/2 in Bend Radius, 50 ft Nominal Lg

UPC: 994141420974 | Harmonization / Schedule B : 8307.10.6000

Country of Origin: United States | Shipping Weight: 15.95 lbs

$148.34 - $148.34
$148.34
$148.34 - $148.34
$148.34
Liquid-Tight Flex Metal Conduit, Trade Size 3/4 in, Bend Radius 2 1/2 in, Color Gray, Approval Rating ANSI, JIC, NFPA, Steel, Jacket Material Flame Retardant PVC, Max. Operating Temp. 165 Degrees F, Min. Operating Temp. -22 Degrees F, Nominal Length 50 ft, Finish Galvanized, Flammability Rating ANSI, Flexibility Flexible, Inside Diameter 0.82 in, Jacket Color Gray, Jacketed Yes, Liquid Tight Conduit Application Metallic, Outside Diameter 1.03 in, Resistance Properties Oil Resistant, UV Resistant
Series 6100
Flexible Conduit Usable Temp. Range -22 Degrees to 165 Degrees F
Standards ANSI/NFPA-79, JIC Standards
Liquid Tight Conduit Application Metallic, Non-UL Required
Conduit Material Steel
Material Steel
Flexible Conduit Color Gray
Flexible Conduit Core Material Hot Dipped Galvanized Steel
Jacket Material Flame Retardant PVC
Special Features Very Flexible
Jacketed Yes
Finish Galvanized
Max. Operating Temp. 165 Degrees F
Color Gray
Approval Rating ANSI, JIC, NFPA
Jacket Color Gray
Flexibility Flexible
Voltage 600 V
Resistance Properties Oil Resistant, UV Resistant
Usable Temperature Range -22 Degrees F to 165 Degrees F
Special Properties Oil Resistant
Wet Location Yes
Min. Operating Temp. -22 Degrees F
Flammability Rating ANSI
