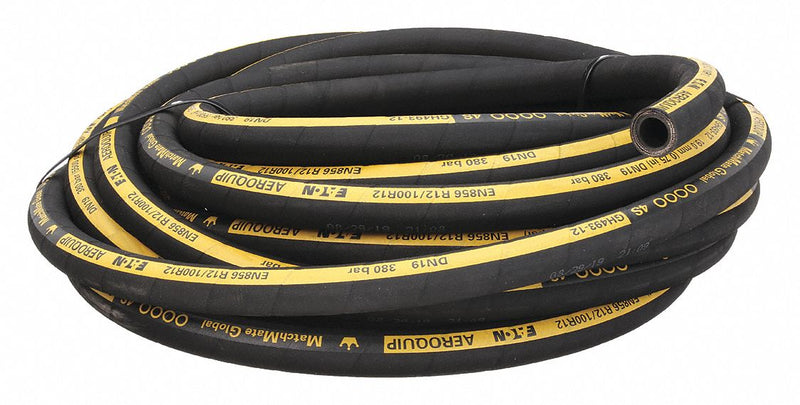

Aeroquip GH493-12 Hydraulic Bulk Hose, 3/4 in ID x 1-15/64 in OD, 50 ft, 5,500 psi, Synthetic Rubber, Black, 4-Spiral Wire

Aeroquip GH493-12 Hydraulic Bulk Hose, 3/4 in ID x 1-15/64 in OD, 50 ft, 5,500 psi, Synthetic Rubber, Black, 4-Spiral Wire

UPC: | Harmonization / Schedule B : 4009.22.0050

Country of Origin: United States | Shipping Weight: 45.13 lbs

$1,889.64 - $1,889.64
$1,889.64
$1,889.64 - $1,889.64
$1,889.64

Hydraulic Hose, Hose Inside Dia. 3/4 in, Hose Outside Dia. 1 15/64 in, Hose Length 50 ft, Hose Tube Material Synthetic Rubber, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Spiral, Hose Reinforcement Material Carbon Steel, Hose Color Black, Series GH493, Max. Working Pressure @ 70 F 5,500 psi, Safety Factor 4:1, Temp. Range -40 Degrees to 260 Degrees F, Standards ABS, DNV, EN 856 4SP, EN 856 R12, SAE 100R12, ISO 3862 R12, MSHA, USCG, Hose Configuration Bulk Hose.

Series GH493
Hose Configuration Bulk Hose
Hose Inside Diameter 3/4 in
Hose Outside Diameter 1-15/64 in
Hose Length 50 ft
Hose Tube Material Synthetic Rubber
Hose Cover Material Synthetic Rubber
Hose Reinforcement Type Spiral
Hose Reinforcement Material Carbon Steel
Hose Color Black
Max. Working Pressure @ 70 °F 5,500 psi
Safety Factor 4:1
Temp. Range -40° to 260°F
Standards ABS, DNV, EN 856 4SP, EN 856 R12, SAE 100R12, ISO 3862 R12, MSHA, USCG
Country of Origin United States
