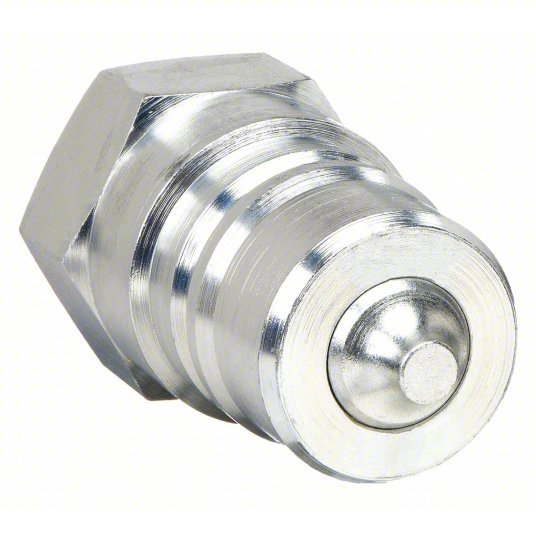

Aeroquip 5602-8-10S Hydraulic Quick Connect Hose Coupling 5/8 in Coupling Size, Steel, 45 lpm Max. Flow Rate

UPC: 094700595058 | Harmonization (Schedule B): 7307.99.5045

Original price $23.99 - Original price $23.99
Original price
$23.99 - $23.99
Current price $23.99
Hydraulic Quick Connect Hose Coupling, Plug, 5600 Series, Steel, Coupling Size 5/8 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 45 lpm
Quick Coupler Type Hydraulic Coupler Nipple
Coupler Interchange Type 5600 A
Connection Type NPT
Coupler Flow Rate 12.0 gpm
Max. Pressure 4000 psi
Coupler Body Material Steel
Sleeve Material Steel
Coupler Finish Trivalent Chromium Zinc
Series 5600
Body Material Steel
Coupling Locking Type Sleeve
Seal Material Nitrile
Operating Temp. Range -40 Degrees to 250 Degrees F
Hansen Interchange 4-A-26; HA-15232-00
Coupler Connection Type FNPT
Valve Design Poppet
Shut Off double
For Use With All Hydraulic Applications
Standards ISO 7241-1 Series A
Parker Interchange 6602-8-10
Seal Type Captive Valve
Locking Mechanism Ball
Max. Flow Rate 45 lpm
Includes Bearing Yes
Includes Valve Yes
Coupling Component Plug
Weatherhead Interchange 5602-8-10S
Finish/Coating Trivalent Chromium Zinc
Fitting Type FNPT
Hose Fitting Gender Female
Includes Shut Off Yes
Safeway Interchange S561-4
Maximum Vacuum 28 in Hg
Snap-Tite Interchange 61N-8-8; 61N8-8F
Pull Ring Material PTFE
Max. Working Pressure @ 70 F 4,000 psi
Valve Type Poppet
