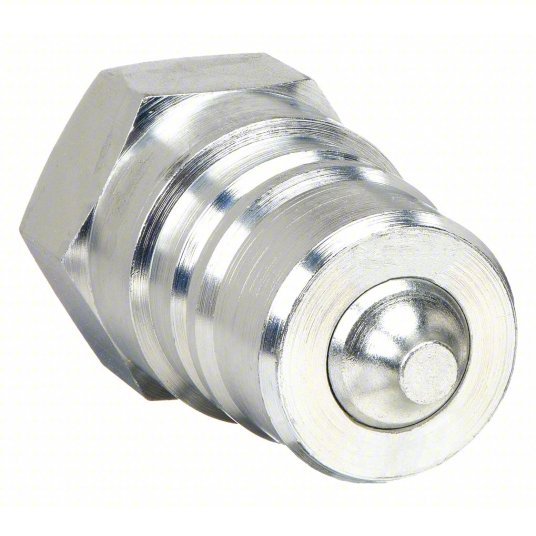

Aeroquip 5602-6-6S Hydraulic Quick Connect Hose Coupling 3/8 in Coupling Size, Steel, 6 lpm Max. Flow Rate
UPC: 994141407197 | Harmonization (Schedule B): 7307.99.5045
SKU KV2F557
Original price
$26.65
-
Original price
$26.65
Original price
$26.65
$26.65
-
$26.65
Current price
$26.65
Hydraulic Quick Connect Hose Coupling, Plug, 5600 Series, Steel, Coupling Size 3/8 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 6 lpm
| Coupler Interchange Type | 5600 A |
| Connection Type | NPT |
| Coupler Flow Rate | 6.0 gpm |
| Max. Pressure | 4000 psi |
| Coupler Body Material | Steel |
| Sleeve Material | Steel |
| Coupler Finish | Trivalent Chromium Zinc |
| Series | 5600 |
| Body Material | Steel |
| Coupling Locking Type | Sleeve |
| Standards | ISO 7241-1 Series A |
| Shut Off | double |
| For Use With | All Hydraulic Applications |
| Operating Temp. Range | -40 Degrees to 250 Degrees F |
| Hansen Interchange | 3-A-21; HA-15222-00 |
| Seal Type | Captive Valve |
| Valve Design | Poppet |
| Seal Material | Nitrile |
| Parker Interchange | 6602-6-6 |
| Coupler Connection Type | FNPT |
| Locking Mechanism | Ball |
| Safeway Interchange | S561-3 |
| Valve Type | Poppet |
| Hose Fitting Gender | Female |
| Finish/Coating | Trivalent Chromium Zinc |
| Maximum Vacuum | 28 in Hg |
| Max. Working Pressure @ 70 F | 4,000 psi |
| Fitting Type | FNPT |
| Includes Bearing | Yes |
| Snap-Tite Interchange | 61N-6-6; 61N6-6F |
| Coupling Component | Plug |
| Weatherhead Interchange | 5602-6-6S |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Pull Ring Material | PTFE |
| Max. Flow Rate | 6 lpm |
