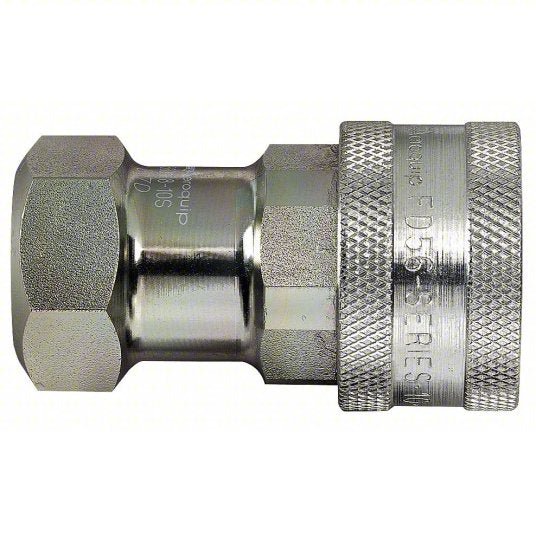

Aeroquip 5601-8-10S Hydraulic Quick Connect Hose Coupling 5/8 in Coupling Size, Steel, 45 lpm Max. Flow Rate
UPC: 994139706127 | Harmonization (Schedule B): 7307.99.5045
SKU KV2F547
Original price
$57.60
-
Original price
$57.60
Original price
$57.60
$57.60
-
$57.60
Current price
$57.60
Hydraulic Quick Connect Hose Coupling, Socket, 5600 Series, Steel, Coupling Size 5/8 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 45 lpm
Quick Coupler Type | Hydraulic Coupler Body |
Coupler Interchange Type | 5600 A |
Connection Type | NPT |
Coupler Flow Rate | 12.0 gpm |
Max. Pressure | 4000 psi |
Coupler Body Material | Steel |
Sleeve Material | Steel |
Coupler Finish | Trivalent Chromium Zinc |
Series | 5600 |
Body Material | Steel |
Coupling Locking Type | Sleeve |
Seal Material | Nitrile |
For Use With | All Hydraulic Applications |
Standards | ISO 7241-1 Series A |
Operating Temp. Range | -40 Degrees to 250 Degrees F |
Seal Type | Captive Valve |
Locking Mechanism | Ball |
Shut Off | double |
Coupler Connection Type | FNPT |
Parker Interchange | 6601-8-10 |
Hansen Interchange | 4-I-26; HA-15231-00 |
Valve Design | Poppet |
Coupling Component | Socket |
Valve Type | Poppet |
Includes Bearing | Yes |
Max. Flow Rate | 45 lpm |
Weatherhead Interchange | 5601-8-10S |
Hose Fitting Gender | Female |
Safeway Interchange | S565-4 |
Snap-Tite Interchange | 61C-8-8; 61C8-8F |
Pull Ring Material | PTFE |
Fitting Type | FNPT |
Finish/Coating | Trivalent Chromium Zinc |
Includes Shut Off | Yes |
Includes Valve | Yes |
Maximum Vacuum | 28 in Hg |
Max. Working Pressure @ 70 F | 4,000 psi |
