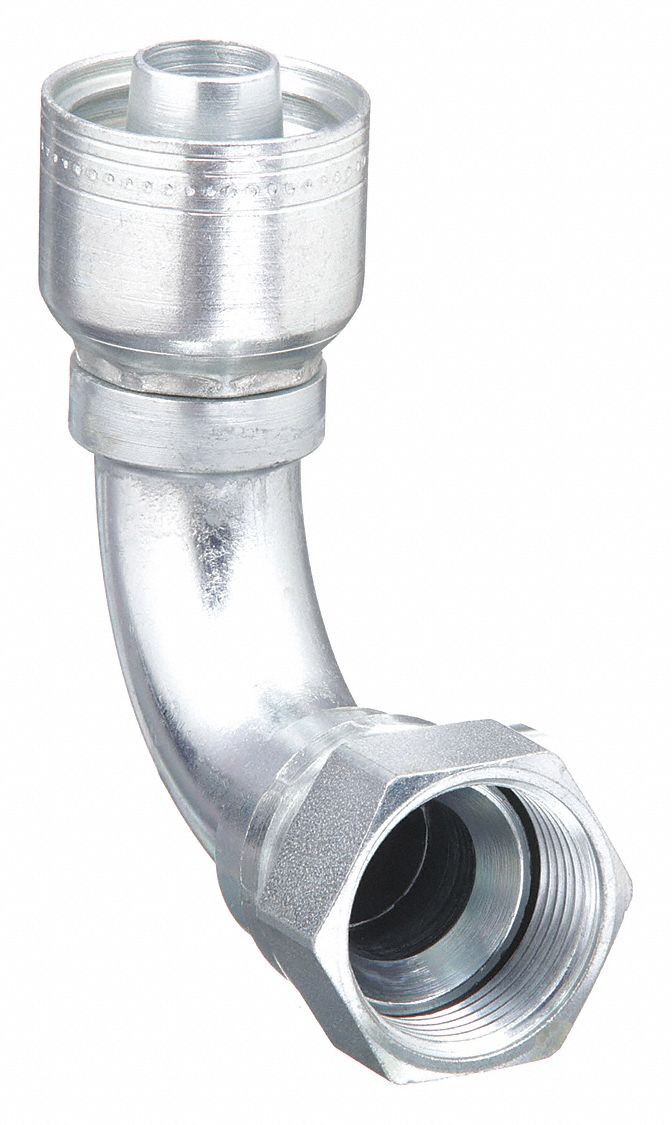

Aeroquip 1AA8FJB6 Hydraulic Crimp Fitting, 3/4 in x 3/8 in, Female Genderless, Female JIC Threaded x Crimp

Aeroquip 1AA8FJB6 Hydraulic Crimp Fitting, 3/4 in x 3/8 in, Female Genderless, Female JIC Threaded x Crimp

UPC: 094706453406 | Harmonization / Schedule B : 7307.92.9000

Country of Origin: United States | Shipping Weight: 0.21 lbs

$42.67 - $42.67
$42.67
$42.67 - $42.67
$42.67

Hydraulic Crimp Fitting, For Hose Dash Size -8, For Use With Hose Series 2661(-12 through -32); EC110; EC115; EC118; EC210; EC215; FC310; FC510; FC579; FC611; FC619 (-12 through -32); FC639/FC839B; FC693; FC735; FC849/FC849B; GH120; GH194; GH195; GH663; GH681-6; GH781; GH793, For Hose I.D. 3/8 in, Thread Size 3/4 In.-16, Fitting Shape 90 Degrees Elbow, Swivel, Vacuum Rating Not Rated, Thread Type JIC, Hose Fitting A Gender Female, Hose Fitting B Gender Genderless, Hose Fitting A Size 3/4 in

Fitting Size 3/4 in x 3/8 in
Length (In.) 2.42
Hydraulic Fitting Thread Size 3/4"-16
Hose Dash Size 6
For Hose Dash Size -8
Hose Fitting B Size 3/8 in
Thread Size 3/4"-16
Hose Fitting A Size 3/4 in
MFR # 1AA8FJB6
Zoro # G0845616
UPC # 094706453406
Country of Origin United States
Fitting Connection Type JIC x Crimp
Fitting Shape 90 Degrees Elbow
For Hose I.D. 3/8 in
Fitting Material Steel x Steel
Finish ROHS Trivalent Chromium Zinc
For Use With Hose Series 2661(-12 to -32), EC110, EC115, EC118, EC210, EC215, FC310, FC510, FC579, FC611, FC619 (-12 to -32), FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793
Hydraulic Fitting Connection Type Crimpable
Hydraulic Fitting Thread Type Female JIC Swivel
Hydraulic Hose I.D. 3/8 in
Standards GH793, SAE 100R1, SAE 100R2
Thread Angle (Deg.) 37
Thread Type JIC
Hose Fitting A Connection Type Threaded
Vacuum Rating Not Rated
Fitting Movement Swivel
Reusable No
Hose Fitting B Gender Genderless
Hose Fitting B Connection Type Crimp
Material Grade 12L14, 12L15
Hose Fitting A Gender Female
Material Carbon Steel
Country of Origin USA (subject to change)
