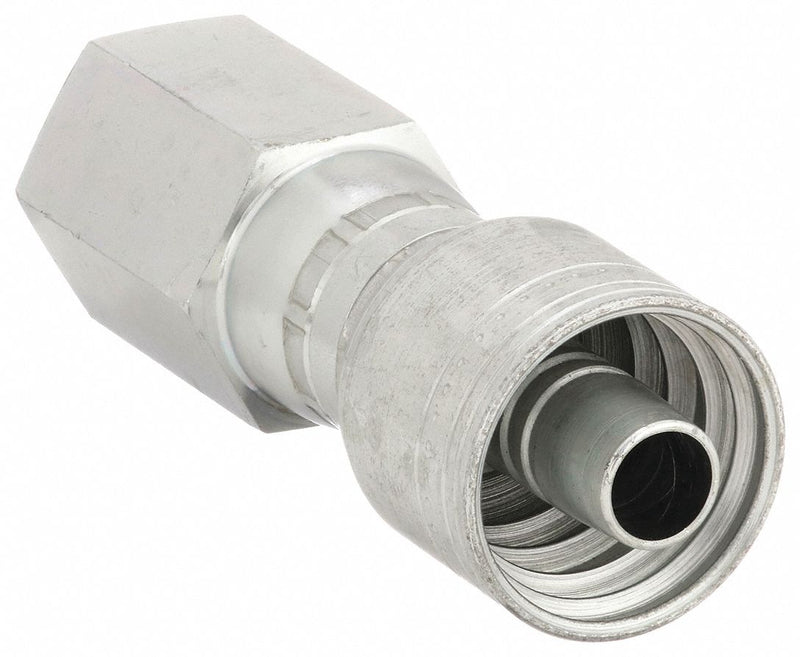

Aeroquip 1AA4PF4 Hydraulic Crimp Fitting, 1/4 in 1/4 in, Female Genderless, Female NPTF Threaded x Crimp

Aeroquip 1AA4PF4 Hydraulic Crimp Fitting, 1/4 in 1/4 in, Female Genderless, Female NPTF Threaded x Crimp

UPC: | Harmonization / Schedule B : 7307.99.5045

Country of Origin: Mexico | Shipping Weight: 0.21 lbs

$71.44 - $71.44
$71.44
$71.44 - $71.44
$71.44

Hydraulic Crimp Fitting, For Hose Dash Size -4, For Use With Hose Series 2661(-12 through -32); EC110; EC115; EC118; EC210; EC215; FC310; FC510; FC579; FC611; FC619 (-12 through -32); FC639/FC839B; FC693; FC735; FC849/FC849B; GH120; GH194; GH195; GH663; GH681-6; GH781; GH793, For Hose I.D. 1/4 in, Thread Size 1/4 In.-18, Fitting Shape Straight, Swivel, Vacuum Rating Not Rated, Thread Type NPTF, Hose Fitting A Gender Female, Hose Fitting B Gender Genderless, Hose Fitting A Size 1/4 in

Fitting Size 1/4 in x 1/4 in
Length (In.) 2.87
Hose Dash Size 4
Hydraulic Fitting Thread Size 1/4"-18
For Hose Dash Size -4
Hose Fitting A Size 1/4 in
Hose Fitting B Size 1/4 in
Thread Size 1/4"-18
Fitting Connection Type NPTF x Crimp
Fitting Shape Straight
For Hose I.D. 1/4 in
Fitting Material Steel x Steel
Hydraulic Fitting Thread Type Female NPT
Hydraulic Hose I.D. 1/4 in
Hydraulic Fitting Connection Type Crimpable
For Use With Hose Series 2661(-12 to -32), EC110, EC115, EC118, EC210, EC215, FC310, FC510, FC579, FC611, FC619 (-12 to -32), FC639, FC693, FC735, FC839B, FC849, FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793
Finish ROHS Trivalent Chromium Zinc
Standards GH793, SAE 100R1, SAE 100R2
Hose Fitting A Gender Female
Reusable No
Thread Type NPTF
Hose Fitting B Connection Type Crimp
Hose Fitting A Connection Type Threaded
Fitting Movement Swivel
Vacuum Rating Not Rated
Hose Fitting B Gender Genderless
Material Grade 12L14, 12L15
Material Carbon Steel
Country of Origin Mexico
