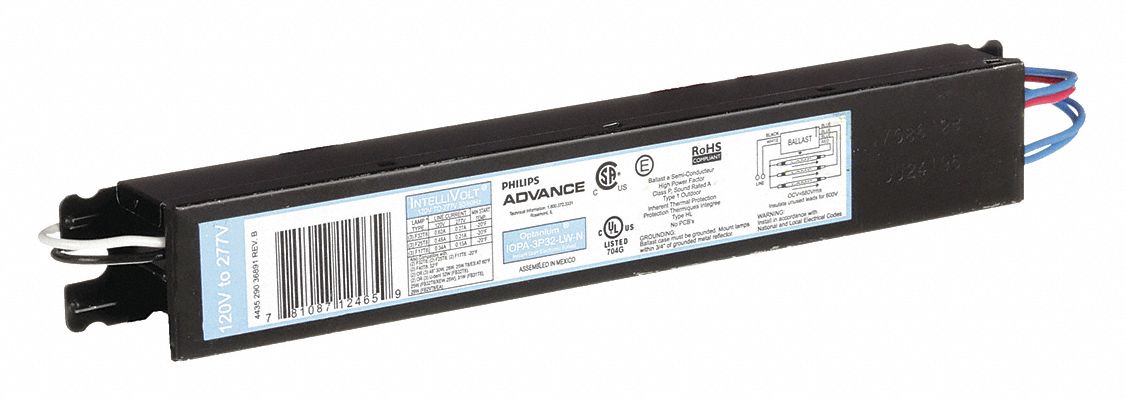

Advance IOPA-3P32-LW-N Fluorescent Ballast, Electronic, T8, 120 to 277V AC, 2 or 3 Lamps, 17-40W Bulb, Optanium, Instant Start

Advance IOPA-3P32-LW-N Fluorescent Ballast, Electronic, T8, 120 to 277V AC, 2 or 3 Lamps, 17-40W Bulb, Optanium, Instant Start

UPC: 781087124673 | Harmonization / Schedule B : 8504.10.0040

Country of Origin: Mexico | Shipping Weight: 0.88 lbs

$36.12 - $36.12
$36.12
$36.12 - $36.12
$36.12

Optanium(R), Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 120 to 277V AC, Number of Bulbs Supported 2, 3, Max. Bulb Watts 17 W, 25 W, 28 W, 32 W, 40 W, Ballast Bulb Type T8, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. -20 Degrees F

Length 9 1/2 in
Width 1 3/8 in
Height 1 in
Ballast Lamp Type T8
Ballast Max. Number of Lamps 3
Input Voltage 120 to 277V AC
Ballast Voltage 120-277
Ballast Start Type Instant
Ballast Dimming No
Ballast Item Electronic Ballast
Ballast Max. Lamp Watts 32
Ballast Type Electronic
Ballast Dimming Type No Dimming
Input Watts 71 to 73 W
Ballast Family Optanium(R)
Ballast Factor 0.77
Power Factor 0.98
Number of F25T8 Lamps 2 or 3
Amps AC 0.27 to 0.62 A
Number of F32T8 Lamps 2 or 3
Number of F30T8 Lamps 2 or 3
Number of F32T8(30W) Lamps 2 or 3
Total Harmonic Distortion 10 %
Number of F32T8U Lamps 2 or 3
Ballast Lamp Watts 32
Light Output Low
Number of F40T8 Lamps 2
Min. Starting Temp. -20 Degrees F
Number of F17T8 Lamps 2 or 3
Wiring Type Parallel
Number of F28T8 Lamps 2 or 3
Green Environmental Attribute Product Contributes To Reducing Energy Consumption
Number of F32T8(28W) Lamps 2 or 3
Voltage 120/277
Standards CEC Listed, CEE Rated, CSA, NEMA, RoHS Compliant, UL Listed
Fixture Ballast Type Electronic
Ballast Bulb Type T8
Dimming Type No Dimming
Frequency 50/60 Hz
Max. Bulb Watts 17 W, 25 W, 28 W, 32 W, 40 W
Sockets Included No
Dimming Method No Dimming
Operating Amps @ 120V 0.62 A
Number of Bulbs Supported 2, 3
Thermal Protection Class P
Number of F32T8(26W) Lamps 2 or 3
Dimming Range No Dimming
Brand and Series Optanium(R)
Starter Required No
Dimming No
Lamp Types Supported (2 or 3) F17T8, (2 or 3) F25T8, (2 or 3) F28T8, (2 or 3) F32T8, (2) F40T8
Country of Origin Mexico
