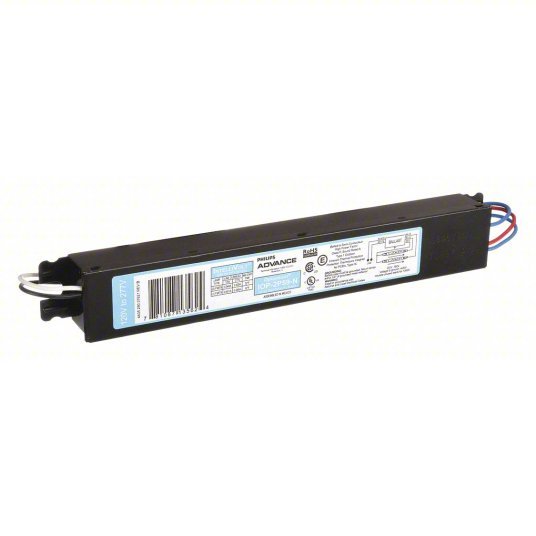

Advance IOP-2P59-N Fluorescent Ballast T8, 120 to 277V AC - KVM Tools Inc.KV1XWJ3

Advance IOP-2P59-N Fluorescent Ballast T8, 120 to 277V AC

UPC: 781087102916 | Harmonization / Schedule B : 8504.10.0000

Country of Origin: Mexico | Shipping Weight: 1.15 lbs

$38.34 - $38.34
$38.34
$38.34 - $38.34
$38.34
SmartMate(R), Electronic, CFL Ballast, Ballast Start Type Programmed, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 16 W, Compact Fluorescent Ballast Bulb Type, 4-Pin (G24q), (PL-C) Bulb Base Type, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, 0 Degrees F Min. Starting Temp., 158 Degrees F Max. Operating Temp., Thermal Protection No
Ballast Lamp Type Compact Fluorescent
Ballast Max. Lamp Watts 16
Ballast Voltage 120-277
Ballast Max. Number of Lamps 2
Ballast Start Type Programmed
Ballast Dimming No
Ballast Dimming Type No Dimming
Input Watts 29W
Number of F13BX Lamps 1 or 2
Special Features Dual Connector
Ballast Lamp Watts 16
Green Environmental Attribute Product Contributes To Reducing Energy Consumption
Min. Starting Temp. 0 Degrees F
Ballast Family SmartMate(R)
Light Output Normal
Base Type 4 Pin
Item CFL Ballast
Power Factor 0.98

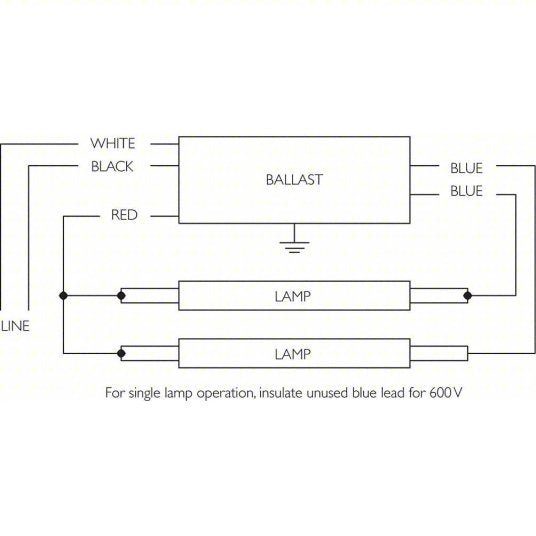

Wiring Type Series
Ballast Factor 1
Total Harmonic Distortion Less Than 10%
Number of F13DBX Lamps 1 or 2
Fixture Ballast Type Electronic
Ballast Bulb Type Compact Fluorescent
Standards CSA Certificate, RoHS Compliant, UL Certificate
Includes Lead Wire (Color Coded), Mounting Plate Adapter, Wire Extraction Tool
Dimming Type No Dimming
Bulb Base Type 4-Pin (G24q), (PL-C)
Thermal Protection No
Max. Operating Temp. 158 Degrees F
Number of Bulbs Supported 1, 2
Brand and Series SmartMate(R)
Dimming Method No Dimming
Input Voltage 120 to 277V AC
Frequency 50/60Hz
Operating Amps @ 120V 0.11 A, 0.25 A
Dimming Range No Dimming
Starter Required No
Max. Bulb Watts 16 W
Dimming No
