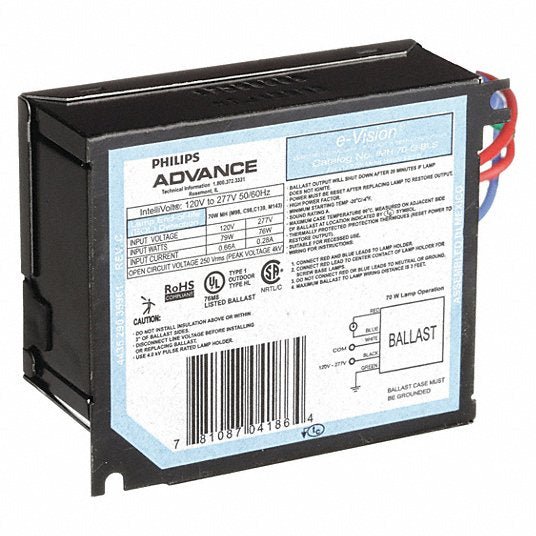

Advance IMH-70-G-BLS 70 W, 1 Lamp HID Ballast

UPC: 781087041864 | Harmonization (Schedule B): 8504.10.0000

SKU KV4HGJ7
Original price $264.99 - Original price $264.99
Original price
$264.99
$264.99 - $264.99
Current price $264.99
e-Vision(TM), Electronic, HID Ballast, Ballast Start Type Pulse, ANSI Code C98/M98/C139/M139/M1, Metal Halide Ballast Bulb Type, Number of Bulbs Supported 1, Max. Bulb Watts 70 W, Input Voltage 120/277V AC, Input Watts 76 to 79W, -4 Degrees F Min. Starting Temp., Ballast Factor 1, Frequency 50/60Hz


Ballast Lamp Type Metal Halide
Item HID Ballast
Ballast Max. Lamp Watts 70
Ballast Voltage 120-277
Ballast Start Type Pulse
For Use With Metal Halide HID Bulbs
ANSI Code C98/M98/C139/M139/M1
Ballast Item HID Ballast
Input Watts 76 to 79W
Ballast Family e-Vision(TM)
Operating Amps @ 277V 0.28 A
Number of Lamps 1
Ballast Lamp Watts 70
Min. Starting Temp. -4 Degrees F
Footnotes 5
Hz 60
Operating Amps @ 120V 0.66 A
Includes Bottom Exit Leads and Mounting Studs
Thermal Protection Class P
Ballast Type Electronic
Figure Number G
Fixture Ballast Type Electronic
Ballast Bulb Type Metal Halide
Ballast Factor 1
Brand and Series e-Vision(TM)
Standards CSA Certificate, NOM Certificate, RoHS Compliant, UL Certificate
Starter Required No
Min. Bulb Watts 70 W
Housing Material Steel
Number of Bulbs Supported 1
Frequency 50/60Hz
Max. Bulb Watts 70 W
Input Voltage 120/277V AC
Package Quantity 1
