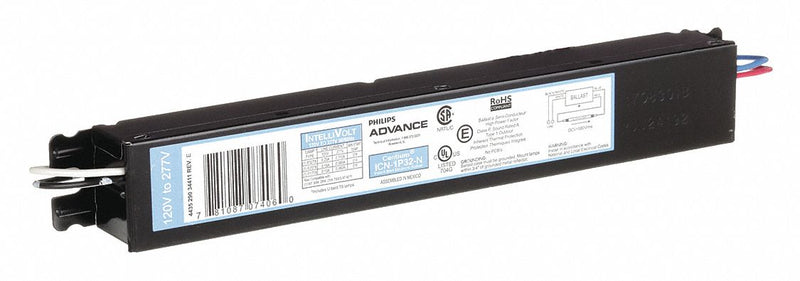

Advance ICN-1P32-N Fluorescent Ballast, 120 to 277V AC, 1 Lamps Supported, 17 W_25 W_28 W_32 W Bulb Watt

Advance ICN-1P32-N Fluorescent Ballast, 120 to 277V AC, 1 Lamps Supported, 17 W_25 W_28 W_32 W Bulb Watt

UPC: 781087074060 | Harmonization / Schedule B : 8504.10.0000

Country of Origin: Mexico | Shipping Weight: 0.8 lbs

$36.84 - $36.84
$36.84
$36.84 - $36.84
$36.84

Centium(TM), Electronic, Fluorescent Ballast, Ballast Start Type Instant, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, Max. Bulb Watts 17 W, 25 W, 28 W, 32 W, Ballast Bulb Type T8, T8U, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. 0 Degrees F

Length 9 1/2 in
Height 1 in
Width 1 3/8 in
Ballast Lamp Type T8
Ballast Max. Number of Lamps 1
Input Voltage 120 to 277V AC
Ballast Voltage 120-277
Ballast Start Type Instant
Ballast Dimming No
Ballast Item Electronic Ballast
Ballast Max. Lamp Watts 32
Ballast Type Electronic
Ballast Dimming Type No Dimming
Input Watts 29 to 30 W
Ballast Family Centium(TM)
Number of F32T8 Lamps 1
Number of F32T8U Lamps 1
Ballast Factor 0.91
Light Output Normal
Number of F28T8 Lamps 1
Ballast Lamp Watts 32
Total Harmonic Distortion 10 %
Wiring Type Parallel
Number of F17T8 Lamps 1
Number of F25T8 Lamps 1
Min. Starting Temp. 0 Degrees F
Green Environmental Attribute Product Contributes To Reducing Energy Consumption
Power Factor 0.98
Amps AC 0.26 to 0.11 A
Voltage 120/277
Standards CSA Certificate, RoHS Compliant, UL Certificate CEC Listing
Fixture Ballast Type Electronic
Ballast Bulb Type T8, T8U
Number of F32T8(28W) Lamps 1
Number of F32T8(26W) Lamps 1
Thermal Protection Class P
Dimming Method No Dimming
Dimming Type No Dimming
Number of F32T8(30W) Lamps 1
Number of Bulbs Supported 1
Sockets Included No
Max. Bulb Watts 17 W, 25 W, 28 W, 32 W
Dimming Range No Dimming
Frequency 50/60 Hz
Brand and Series Centium(TM)
Starter Required No
Operating Amps @ 120V 0.26 A
Dimming No
Number of Lamps 1
Lamp Types Supported (1) F17T8, (1) F25T8, (1) F28T8, (1) F32T8, (1) F32T8U
Country of Origin Mexico
