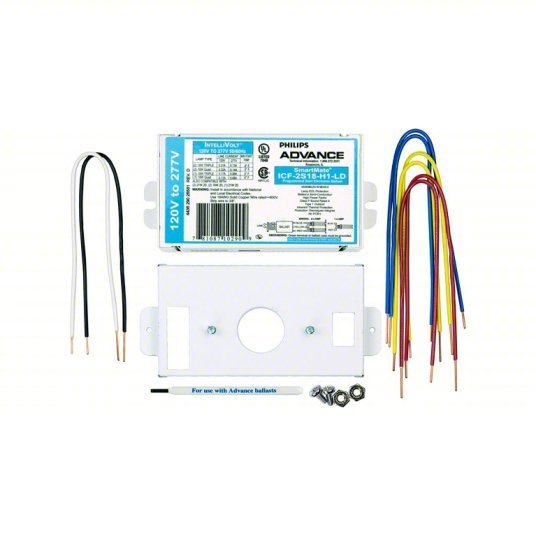

Advance ICF-2S18-H1-LD-K CFL Ballast 120 to 277V AC, 1/2 Lamps Supported, 21 W Bulb Watt, 4 1/4 in Overall Lg

SmartMate(R), Electronic, CFL Ballast, Ballast Start Type Rapid, Input Voltage 120 to 277V AC, Number of Bulbs Supported 1, 2, Max. Bulb Watts 21 W, Ballast Bulb Type PL-Q, Dimming No, Dimming Type No Dimming, Dimming Method No Dimming, Dimming Range No Dimming, Min. Starting Temp. 0 Degrees F

Ballast Type	Electronic
Ballast Lamp Type	Compact Fluorescent
Ballast Max. Lamp Watts	21
Ballast Voltage	120-277
Ballast Max. Number of Lamps	2
Ballast Start Type	Rapid
Ballast Dimming	No
Ballast Dimming Type	No Dimming
Input Watts	35W
Ballast Family	SmartMate(R)
Ballast Lamp Watts	21
Light Output	Normal
Base Type	4 Pin
Min. Starting Temp.	0 Degrees F
Special Features	Dual Connector
Number of F18BX Lamps	1 or 2
Item	CFL Ballast
Green Environmental Attribute	Product Contributes To Reducing Energy Consumption
Wiring Type	Series
Power Factor	0.98
Total Harmonic Distortion	10 %
Ballast Factor	0.95
Fixture Ballast Type	Electronic
Ballast Bulb Type	PL-Q
Frequency	50/60 Hz
Includes	Lead Wire (Color Coded), Mounting Plate Adapter, Wire Extraction Tool
Max. Operating Temp.	158 Degrees F
Bulb Base Type	4-Pin (G24q), (PL-C)
Operating Amps @ 120V	0.13 A, 0.3 A
Dimming Range	No Dimming
Dimming Method	No Dimming
Number of Bulbs Supported	1, 2
Standards	CSA Certificate, RoHS Compliant, UL Certificate
Max. Bulb Watts	21 W
Dimming Type	No Dimming
Brand and Series	SmartMate(R)
Starter Required	No
Thermal Protection	No
Input Voltage	120 to 277V AC
Dimming	No
Voltage	120/277
Lamp Types Supported	(1 or 2) CFQ18, (1 or 2) CFTR18, (1 or 2) F18DBX, (1 or 2) F18TBX, (1 or 2) CFT18
