Acme T2535173S Single Phase Transformer 240V AC/480V AC, 120V AC/240V AC, Wall, Aluminum, Single - KVM Tools Inc.KV4WUC3

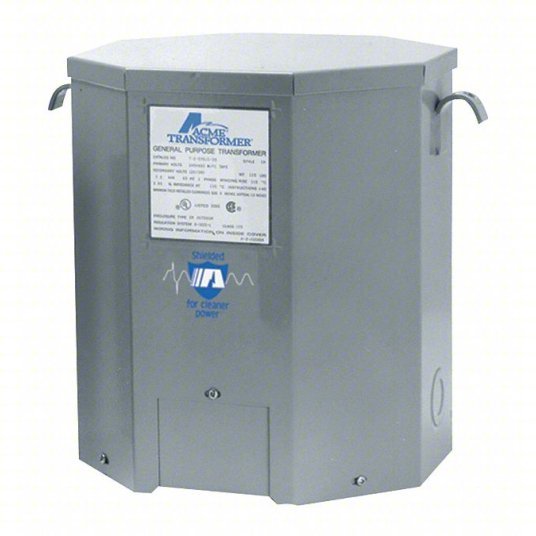

Acme T2535173S Single Phase Transformer 240V AC/480V AC, 120V AC/240V AC, Wall, Aluminum, Single

UPC: 047503734155 | Harmonization / Schedule B : 8504.32.0000

Country of Origin: | Shipping Weight:

$2,550.52 - $2,550.52
$2,550.52
$2,550.52 - $2,550.52
$2,550.52
Single Phase Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 120V AC, 240V AC, VA Rating - Transformer 15 kVA, Mounting - Transformer Wall, Outdoor Rated - Transformer Yes, Voltage Function - Transformer Step Down, Winding Material - Transformer Aluminum, Hz - Electrical 60 Hz, Temp. Rise 115 Degrees C, Enclosure Rating NEMA 3R, IP Rating 14
VA Rating 15kVA
Input Voltage - Transformer 240V AC, 480V AC
Output Voltage - Transformer 120V AC, 240V AC
Output Voltage 120/240VAC
Mounting Wall
VA Rating - Transformer 15 kVA
Enclosure Type Indoor/Outdoor
Mounting - Transformer Wall
Phase - Electrical Single
Hz - Electrical 60 Hz
NEMA Rating NEMA 3R
Hz 60
IP Rating 14
Color Gray
Standards UL Listed,CSA Certified
Item Single Phase Transformer
Winding Material - Transformer Aluminum
Mounting - Transformer Wall
Enclosure Finish Powder Coated
Temp. Rise 115 Degrees C
Enclosure Material Steel
Outdoor Rated - Transformer Yes
Voltage Function - Transformer Step Down
Enclosure Rating NEMA 3R
Insulation Max. Temp. 180°C
Type Dry Type Distribution Transformer
Taps % Steps 0.025
Mounting Type Wall
UL Standard UL 506
Construction Encapsulated
kVA 15
Winding Material AL
CSA Standard C22.2 No. 47
Max Temperature Rise 115 Degrees Celsius
Primary Voltage 240 X 480
BNFC Taps 4
ANFC Taps 2
Frequency Rating 60 Hz
Product Category Dry Type Distribution Transformer
UL Insulation Class 180°C
Electrostatic Shield Shielded
Secondary Voltage 120/240 V
UPC 047503734155
