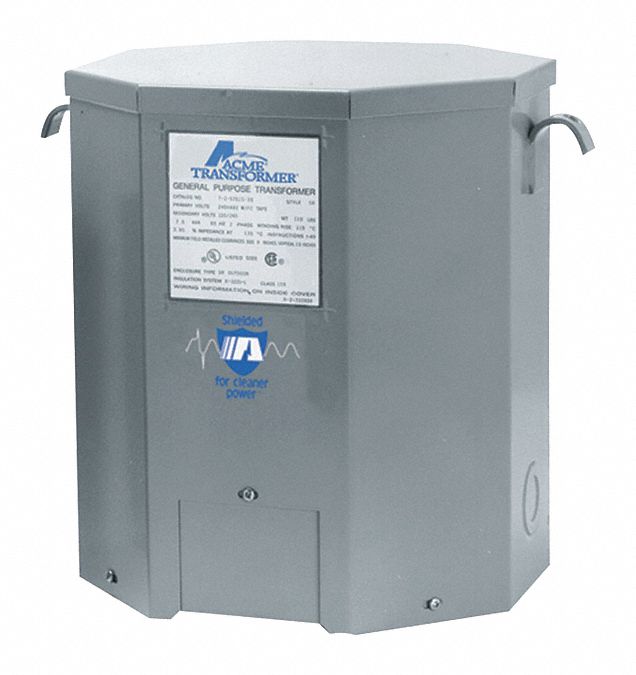

Acme Electric T2535183S 25 kVA Single Phase Dry Type Distribution Transformer NEMA 3R

Acme Electric T2535183S Dry Type Distribution Transformer, 25 kVA, Single Phase, 240V/480V to 120V/240V, NEMA 3R Wall Mount, Step Down, Copper Winding

UPC: 047503734209 | Harmonization / Schedule B : 8504.33.0020

Country of Origin: Mexico | Shipping Weight: 254 lbs

$4,257.01 - $4,257.01
$4,257.01
$4,257.01 - $4,257.01
$4,257.01

Acme Electric T2535183S Dry Type Distribution Transformer, 25 kVA, Single Phase, Step Down. Input 240V/480V AC, Output 120V/240V AC, 60 Hz. NEMA 3R / IP14 weatherproof enclosure for outdoor rated installations. Wall mount. Copper winding, ASA 61 Gray powder polyurethane painted steel enclosure. Quiet operation with sound levels below NEMA standards. Electrostatic shield for enhanced protection. UL 506 and CSA C22.2 No. 47 listed.

Input Voltage 240/480V AC
Output Voltage 120/240V AC
Power Rating 25 kVA
Phase Single Phase
Frequency 60 Hz
Mounting Wall
NEMA Enclosure Rating NEMA 3R
IP Rating IP14
Outdoor Rated Yes
Winding Material Copper
Voltage Function Step Down
Enclosure Material Steel
Enclosure Finish Powder Polyurethane Paint
Color ASA 61 Gray
Temperature Rise 115 C
Includes Knockouts Knockouts Included
Knockout Size 1 in, 1-1/2 in
Standards UL 506, CSA C22.2 No. 47
Overall Dimensions 13.34 x 18.44 x 16.13 in
Country of Origin Mexico
