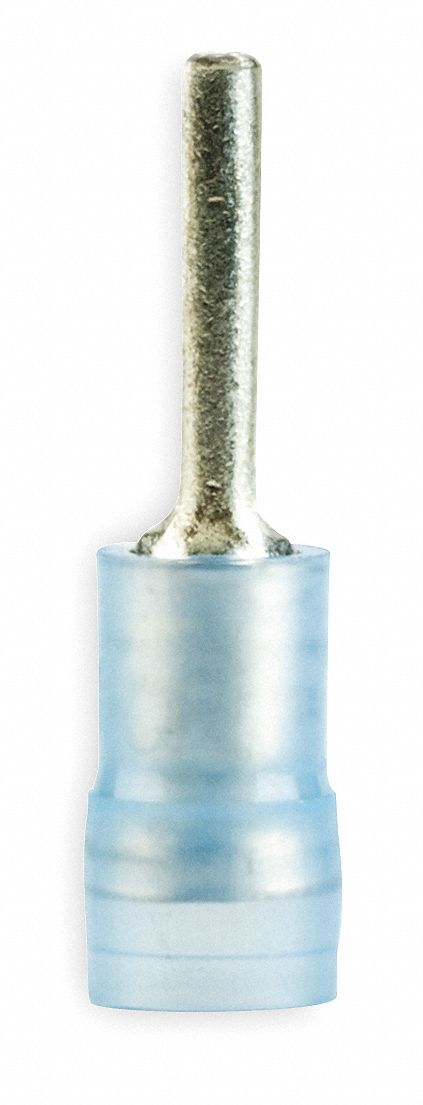

3M MNG14-47PX-A Pin Terminal, Blue, Nylon, 0.075 in Pin Dia

3M MNG14-47PX-A Pin Terminal, Blue, Nylon, 0.075 in Pin Dia

UPC: 051128587751 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: Taiwan | Shipping Weight: 0.24 lbs

$243.25 - $243.25
$243.25
$243.25 - $243.25
$243.25

Pin Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Pin Diameter 0.075 in, Pin Length 0.47 in, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Termination Style Crimp, Barrel Inside Diameter 0.08 in, Barrel Outside Diameter 0.2 in

Maximum Wire Size 14 AWG
Minimum Wire Size 16 AWG
Barrel Inside Dia. 0.08 in
Overall Length 0.9 in
Pin Length (In.) 0.47
Pin Diameter 0.075 in
Pin Length 0.47 in
Barrel Inside Diameter 0.08 in
Barrel Outside Diameter 0.2 in
Maximum Insulation Outside Diameter 0.145 in
Wire Rope Length 0.9 in
Length 0.9 in
Terminal Shape Standard Pin
Termination Style Crimp Termination Only
Insulation Color Blue
Insulation Coverage Partial Coverage
Insulation Type Nylon
Contact Material Copper
Maximum Voltage 600 V
Minimum Operating Temperature -40 Degrees F
Maximum Operating Temperature 221 Degrees F
Standards CSA Certified, UL Listed
Terminal Connection Crimp
Connection Material Copper
Max. Voltage 600 V
Seam Brazed
Wire Range 16 to 14 AWG
Max. Temp. 221 Degrees F
Connection Type Crimp
Terminal Type Pin
Barrel Style Insulation Grip
Special Features Funnel-Designed, Seamless Brass Sleeve Offers Easy Insertion of Wires, Provides Quick Connection for Set Screws or Clamps That are Used to Make Electrical Contact
Contact Finish Tin
Compatible with Product Type Copper Wires
Insulation Material Nylon
RoHS Compliant Yes
Seam Style Butted
Country of Origin Taiwan, Province of China
