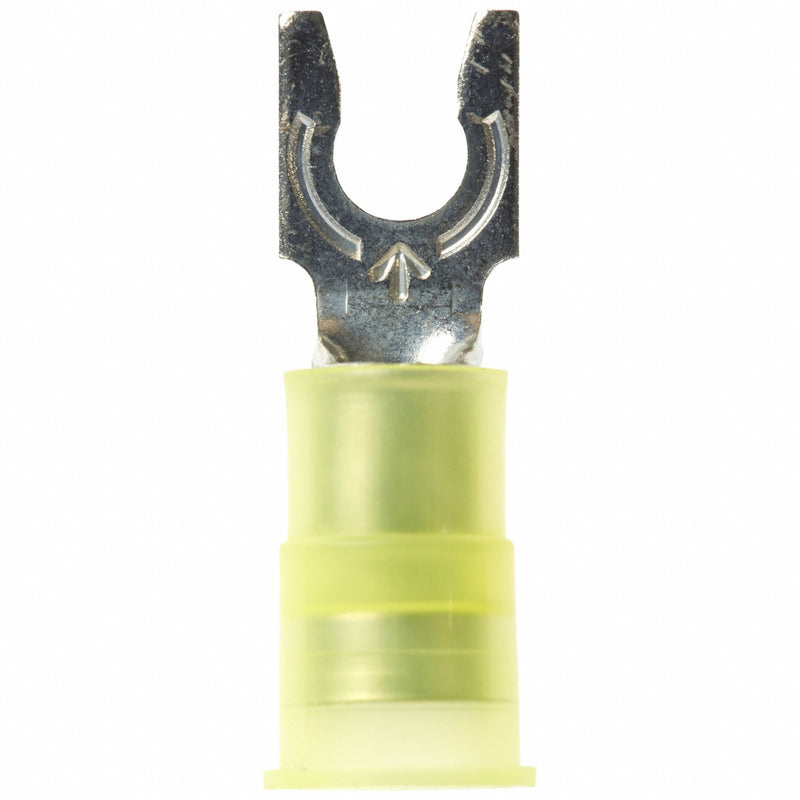

3M Fork Terminal MNG10-6FLXB Yellow Nylon PK50

3M MNG10-6FLXB Fork Terminal, Locking, #6 Stud, 12-10 AWG, 600V, Nylon Yellow, PK50

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 0.24 lbs

$130.52 - $130.52
$130.52
$130.52 - $130.52
$130.52

Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Yellow, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 10 AWG, Stud Size #6, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Length 0.55 in, Barrel Style Insulation Grip, Connection Material Copper, Connection Type Crimp, Minimum Wire Size 12 AWG, Overall Length 1.03 in, Package Quantity 50

Terminal Shape Locking Fork
Termination Style Crimp Termination Only
Insulation Color Yellow
Insulation Type Nylon
Contact Material Copper
Maximum Voltage 600 V
Minimum Operating Temperature -40 Degrees F
Maximum Operating Temperature 221 Degrees F
Standards CSA Certified, UL Listed
Seam Brazed
Max. Temp. 221 Degrees F
Terminal Connection Crimp
Connection Type Crimp
Wire Range 12 to 10 AWG
Connection Material Copper
Insulation Material Nylon
Barrel Style Insulation Grip
RoHS Compliant Yes
Seam Style Butted
Contact Finish Tin
Insulation Dia 0.250 Inch
Country of Origin United States
