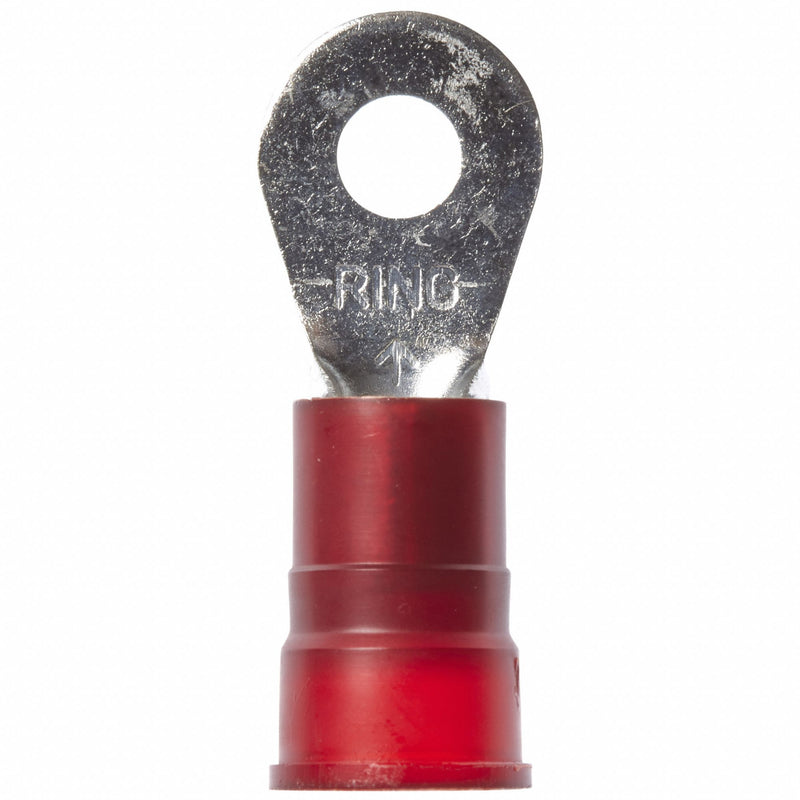

3M MN8-10R/SK Ring Terminal, Red, Nylon Insulation, #10 Stud Size, 8 AWG to 8 AWG Wire Sizes, 1, 000 V

3M MN8-10R/SK Ring Terminal, Red, Nylon Insulation, #10 Stud Size, 8 AWG to 8 AWG Wire Sizes, 1, 000 V

UPC: | Harmonization / Schedule B : 8536.90.4000

Country of Origin: United States | Shipping Weight: 1.6 lbs

$205.08 - $205.08
$205.08
$205.08 - $205.08
$205.08

Ring Terminal, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 8 AWG, Maximum Wire Size 8 AWG, Termination Style Crimp, Tongue Width 0.47 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.18 in, Barrel Length 0.31 in, Barrel Style Brazed, Compatible with Product Type Building Wire, Fixtures or Luminaires, Signs

Terminal Shape Standard Ring Tongue
Termination Style Crimp Termination Only
Insulation Color Red
Insulation Coverage Partial Coverage
Insulation Type Nylon
Contact Material Copper
Maximum Voltage 1,000 V
Minimum Operating Temperature -40 Degrees F
Maximum Operating Temperature 221 Degrees F
Standards CSA Certified, UL Listed
Wire Range 8 AWG
Terminal Connection Crimp
Connection Material Copper
Max. Temp. 221 Degrees F
Terminal Type Standard
Seam Brazed
Connection Type Crimp
Compatible with Product Type Building Wire, Fixtures or Luminaires, Signs
Insulation Material Nylon
Hole Spacing 0.4 in
Seam Style Brazed
Contact Finish Tin
Special Features Corrosion-Resistant, Flared Portion of the Nylon Sleeve Offers Easy Insertion of Wires, Reliable Performance, Secure Fit
RoHS Compliant Yes
Barrel Style Brazed
Country of Origin United States
