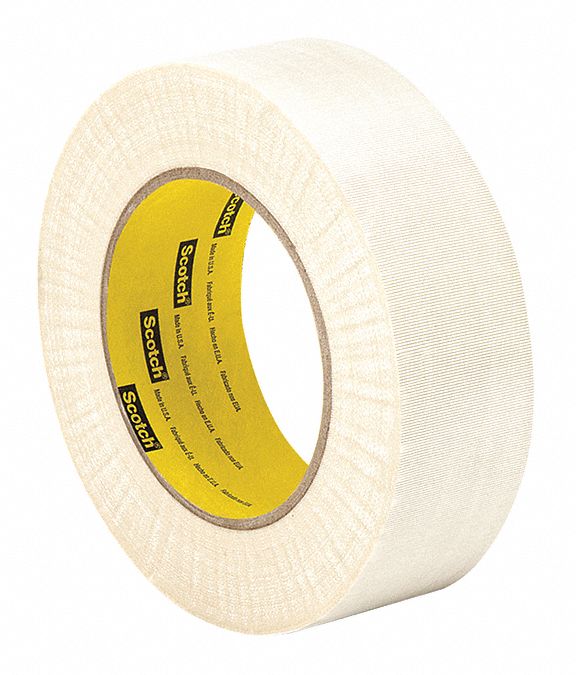

3M 69 Electrical Tape, 2 in Wd, 36 yd Lg, 7 mil Thick, Fiberglass Cloth, Silicone, 600 V Volt Rating

3M 69 Electrical Tape, 2 in Wd, 36 yd Lg, 7 mil Thick, Fiberglass Cloth, Silicone, 600 V Volt Rating

UPC: | Harmonization / Schedule B : 7019.61.4030

Country of Origin: United States | Shipping Weight: 0.92 lbs

$217.28 - $217.28
$217.28
$217.28 - $217.28
$217.28

These continuous rolls of abrasion-resistant electrical tape withstand puncturing and tearing. They are used in applications where a strong hold is needed, such as insulating motor leads.

Tape Type Insulating Electrical Tape
Product Form Continuous Roll
Roll Width 2 in
Thickness 7 mil
Tensile Strength 180 lb/in
Voltage Rating 600 V
Breakdown Voltage 3,000 V
Insulation Resistance 4.80 x 10^4 megaohm
Adhesion to Steel 40 oz/in
Elongation 5 %
Adhesive Format Single-Sided
Adhesive Material Silicone
Backing Construction Cloth
Backing Material Fiberglass Cloth
Color White
Features Pressure Sensitive Adhesive
Overall Roll Length 36 yd
Performance Temperature - Maximum 392 °F
Performance Temperature - Minimum 32 °F
Flame Retardancy Flame-Retardant
Resistance Properties Abrasion-Resistant; Solvent-Resistant
Standards ASTM D1000; CSA; MIL-1-19166C; RoHS 2011/65/EU; UL Listed
Country of Origin USA
