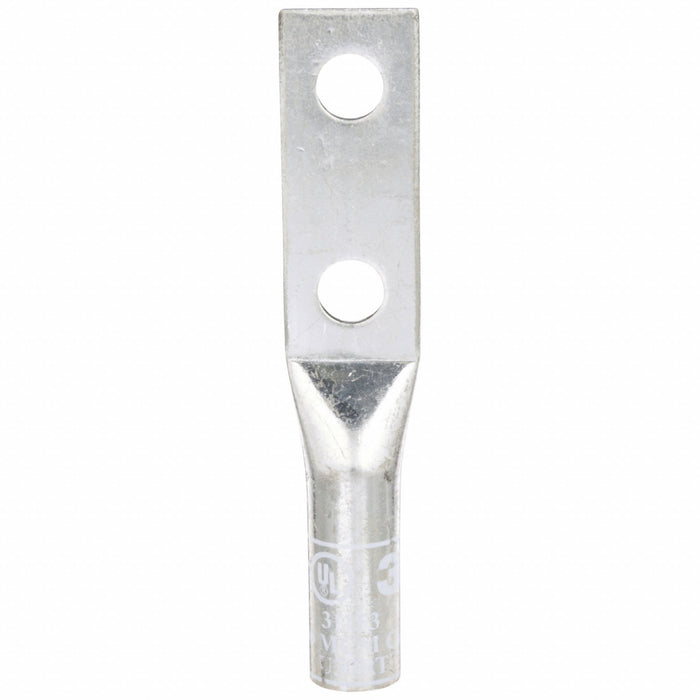

3M 31153 Compression Lugs, For 300 kcmil, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

3M 31153 Compression Lugs, For 300 kcmil, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

UPC: 054007126423 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: Chile | Shipping Weight: 3.4 lbs

$454.66 - $454.66
$454.66
$454.66 - $454.66
$454.66

Compression Lugs, Barrel Size Long, Color Code White, Die Code 17, Tongue Angle Straight, Tongue Width 1.22 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 300 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 2, RoHS Compliant Yes, Barrel Inside Diameter 0.65 in, Barrel Outside Diameter 0.81 in

For Wire Size 300 kcmil
For Stud Size 1/2 in
Barrel Size Long
Tongue Width 1.22 in
Width 1.22"
Length 5-3/4"
Length (Straight Wireway) 5.75 in
Tongue Length 3 in
Barrel Outside Diameter 0.81 in
Country of Origin Chile
