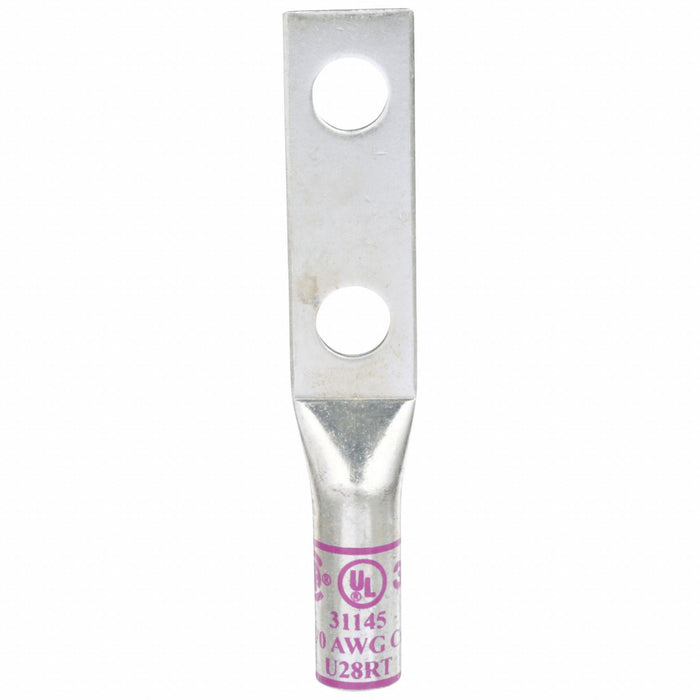

3M 31145 Compression Lugs, For 4/0 AWG, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

3M 31145 Compression Lugs, For 4/0 AWG, Stranded Wire, 1/2 in Stud Size, Long, Copper Barrel

UPC: 054007126003 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: Chile | Shipping Weight: 2.2 lbs

$401.49 - $401.49
$401.49
$401.49 - $401.49
$401.49

Compression Lugs, Barrel Size Long, Color Code Purple, Die Code 15, Tongue Angle Straight, Tongue Width 1 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 4/0 AWG, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 2, RoHS Compliant Yes, Barrel Inside Diameter 0.54 in, Barrel Outside Diameter 0.68 in

For Wire Size 4/0 AWG
For Stud Size 1/2 in
Barrel Size Long
Tongue Width 1 in
Length 5.16"
Width 1"
Length (Straight Wireway) 5.16 in
Barrel Outside Diameter 0.68 in
Barrel Inside Diameter 0.54 in
Country of Origin Chile
