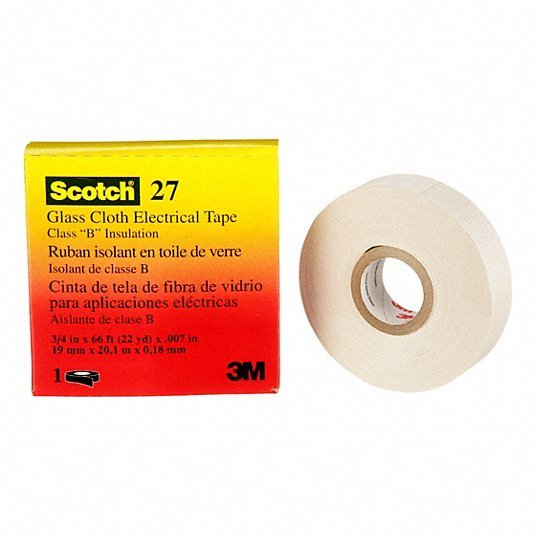

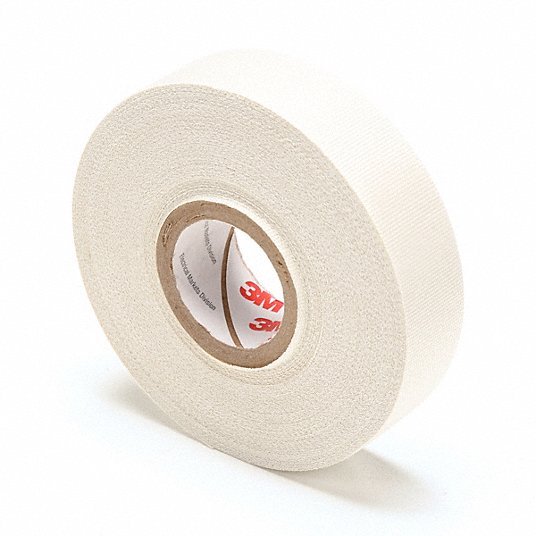

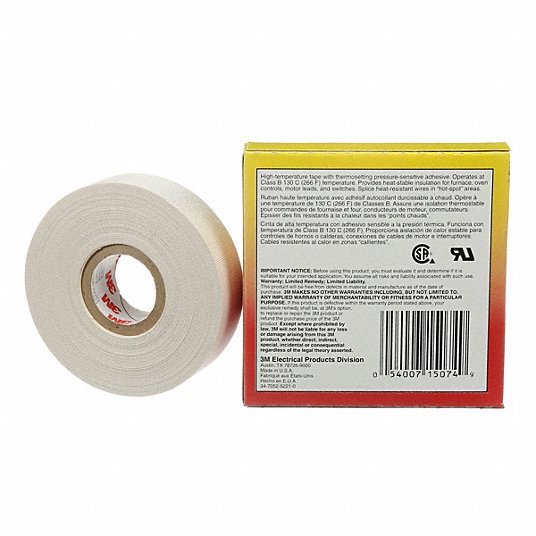

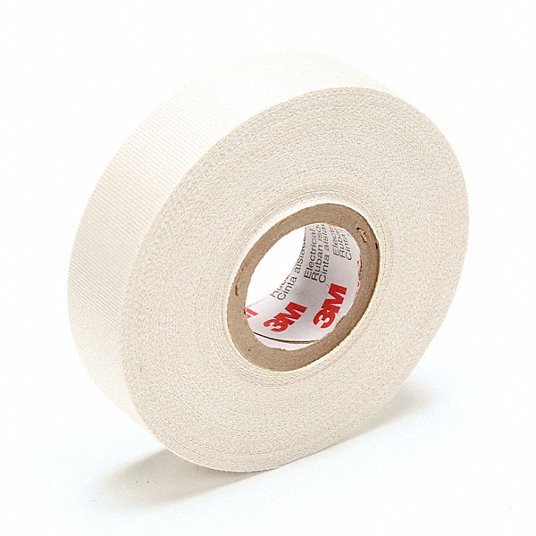

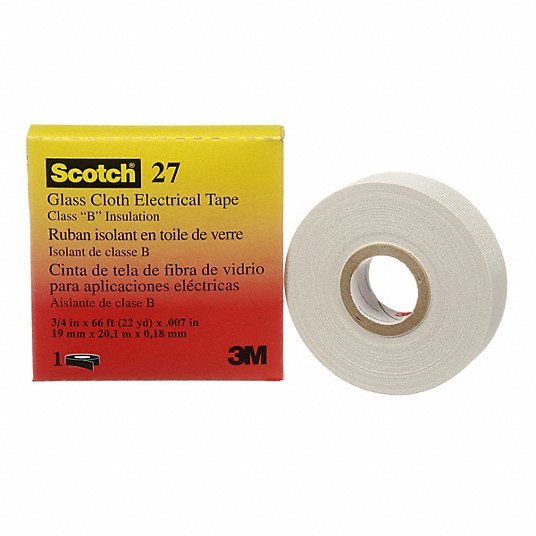

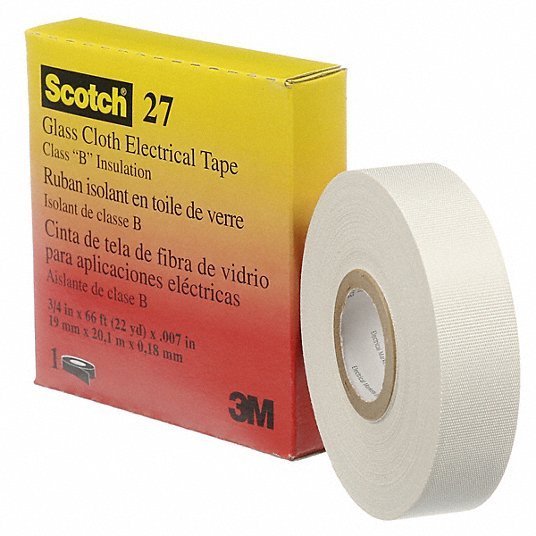

Electrical Tape, Abrasion-Resistant, Fiberglass Cloth, Tape Adhesive Material Rubber, 3/4 in, 22 yd, 7 mil, 3M(TM), Scotch(R), Series 27, White, Minimum Tape Performance Temperature Not Applicable, Maximum Tape Performance Temperature 302 Degrees F, Voltage Rating 600 V, Continuous Roll, Single-Sided
| Tape Color |
White |
| Series |
27 |
| Performance Temp. |
Up to 266 Degrees F |
| Tape Tensile Strength |
150 lb/in |
| Color |
White |
| Duct Tape Adhesive |
Rubber |
| Temperature Range |
32 to 302 Degrees F |
| Material |
Backing: Glass Cloth; Adhesive: Thermosetting Rubber |
| Adhesion Strength |
30 oz./in. |
| Max. Voltage |
600 |
| UV Resistance |
No |
| Shape |
Continuous Roll |
| Standards |
ASTM, ASTM D1000, CSA, UL Listed |
| Tape Backing Material |
Fiberglass Cloth |
| Elongation |
5% |
| Environment |
High Temperature |
| Breakdown Voltage |
3,000 V |
| Insulation Resistance |
4.80 x 10^4 megaohm |
| Minimum Tape Performance Temperature |
32 Degrees F |
| Breaking Strength |
150 lb/in |
| Product Form |
Continuous Roll |
| Tape Conformability |
Conformable |
| Tape Properties |
Pressure Sensitive Adhesive, Printable |
| Tape Adhesive Format |
Single-Sided |
| Tape Adhesive Material |
Rubber |
| Tape Backing Construction |
Cloth |
| Tape Sub-Type |
Abrasion-Resistant |
| Adhesive Properties |
Pressure Sensitive Adhesive |
| Sub-Brand |
Scotch(R) |
| Printed Message |
Unprinted |
| Tape Brand |
3M(TM) |
| Tape Type |
Cloth |
| Tape Resistance Properties |
Abrasion-Resistant, Corrosion-Resistant |
| Adhesion to Steel |
30 oz/in |
| Voltage Rating |
600 V |
| Maximum Tape Performance Temperature |
302 Degrees F |
| Specifications Met |
ASTM, CSA, UL |
| Products By Industry |
Electrical |
| For Temperature Application |
High Temperature |
