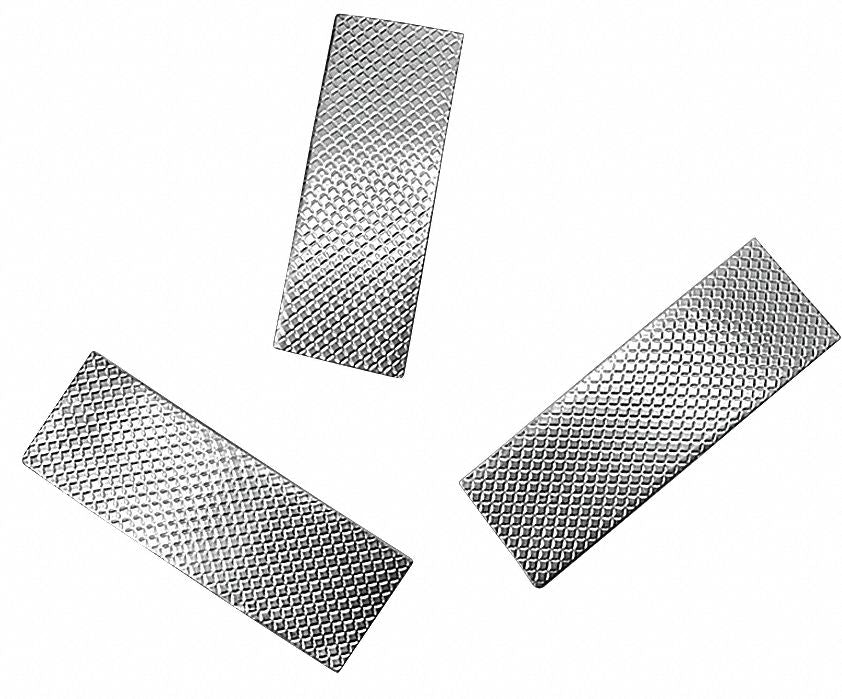

3M 1345 Conductive Electrical Tape Strips, 3/4 in x 4 in, PK100

3M 1345 Conductive Electrical Tape Strips, 3/4 in x 4 in, PK100

UPC: 888519083864 | Harmonization / Schedule B : 7410.12.0060

Country of Origin: Taiwan | Shipping Weight: 0.25 lbs

$194.38 - $194.38
$194.38
$194.38 - $194.38
$194.38

Conductive Electrical Tape, Tape Backing Material Copper Foil, 3/4 in, 4 in, Tape Color Silver, Tape Sub-Type Ultra-Conductive Embossed Foil, Tape Adhesive Material Acrylic, 4 mil, 3M(TM), 1345, Minimum Tape Performance Temperature -40 Degrees F, Maximum Tape Performance Temperature 266 Degrees F, Voltage Rating 600 V, Shielding Effectiveness 66 dB, Liner Included Liner Included, Product Form Pre-Cut, Tape Adhesive Format Single-Sided

Tape Color Silver
Series 1345
Performance Temp. -40 Degrees to 130 Degrees C
Tape Tensile Strength 25 lb/in
Standards RoHS 2011/65/EU, UL Listed
Material Embossed Tin-Plated Copper Foil
Shape Rectangle
Adhesion Strength 45 oz./in.
Number of Adhesive Sides 1
Tape Properties Electrically Conductive, Die-Cuttable, Solderable
Liner Included Liner Included
Breaking Strength 25 lb/in
Minimum Tape Performance Temperature -40 Degrees F
Tape Resistance Properties Heat-Resistant, Oil-Resistant, Oxidation-Resistant, Solvent-Resistant
Adhesive Properties Non-Conductive
Tape Adhesive Material Acrylic
Tape Type Conducting Electrical Tape
Voltage Rating 600 V
Product Form Pre-Cut
Shielding Effectiveness 66 dB
Maximum Tape Performance Temperature 266 Degrees F
Tape Sub-Type Ultra-Conductive Embossed Foil
Adhesion to Steel 45 oz/in
Backing Material Finish Tin-Plated
Pre-Cut Shape Strip
Insulation Resistance 5.00 x 10^-3 ohm/sq
Country of Origin Taiwan, Province of China
