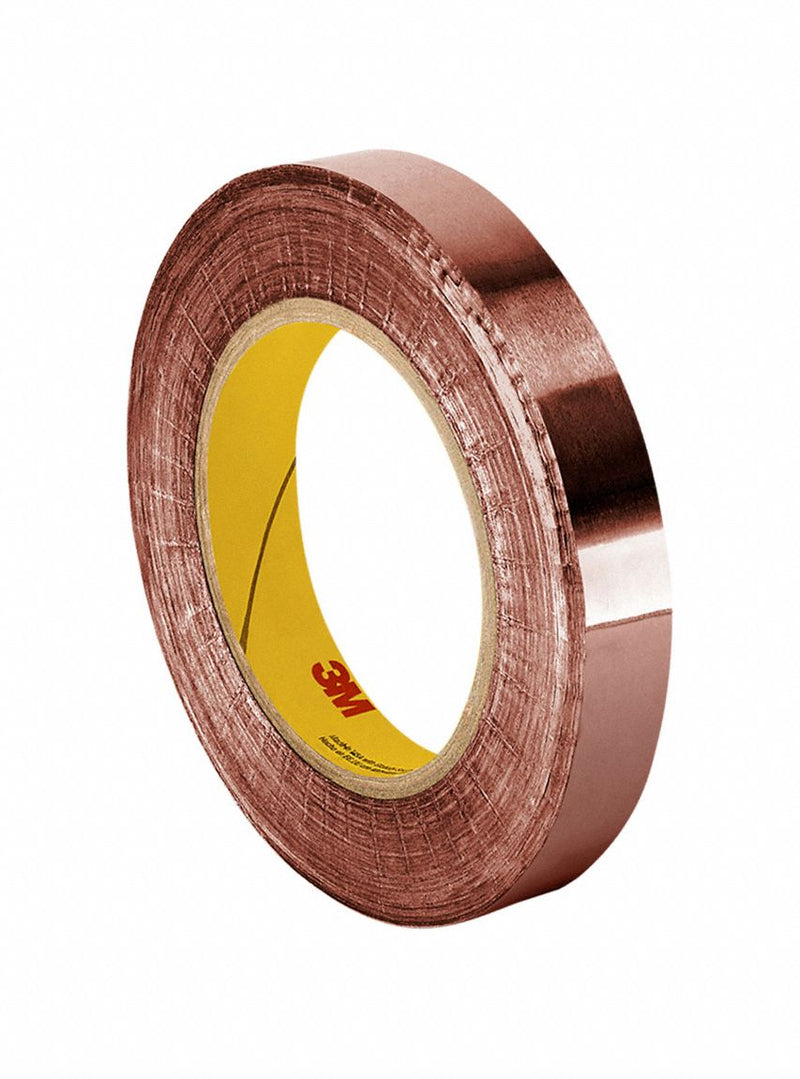

3M 1194 Conductive Electrical Tape, Copper Foil, 3 in x 6 yd

3M 1194 Conductive Electrical Tape, Copper Foil, 3 in x 6 yd

UPC: 888519012048 | Harmonization / Schedule B : 7409.19.9000

Country of Origin: Taiwan | Shipping Weight: 0.47 lbs

$125.20 - $125.20
$125.20
$125.20 - $125.20
$125.20

Conductive Electrical Tape, Tape Backing Material Copper Foil, 3 in, 6 yd, Tape Color Copper, Tape Sub-Type Non-Conductive Adhesive Foil, Tape Adhesive Material Acrylic, 2.6 mil, 3M(TM), 1194, Minimum Tape Performance Temperature Not Rated, Maximum Tape Performance Temperature 150 Degrees F, Voltage Rating 600 V, Shielding Effectiveness 50 dB, Liner Included Liner Included, Product Form Continuous Roll, Tape Adhesive Format Single-Sided

Tape Color Copper
Series 1194
Performance Temp. Up to 149 Degrees F
Tape Tensile Strength 25 lb/in
Adhesion Strength 40 oz./in.
Material Copper Foil
Shape Continuous Roll
Standards RoHS 2011/65/EU, UL Listed
Number of Adhesive Sides 1
Tape Adhesive Format Single-Sided
Minimum Tape Performance Temperature Not Rated
Shielding Effectiveness 50 dB
Adhesive Properties Non-Conductive
Voltage Rating 600 V
Breaking Strength 25 lb/in
Tape Adhesive Material Acrylic
Tape Resistance Properties Heat-Resistant, Oil-Resistant, Oxidation-Resistant, Solvent-Resistant
Tape Type Conducting Electrical Tape
Tape Properties EMI-Shielding, Grounding, Electrically Non-Conductive
Liner Included Liner Included
Tape Sub-Type Non-Conductive Adhesive Foil
Adhesion to Steel 40 oz/in
Maximum Tape Performance Temperature 150 Degrees F
Flame Retardant Flame-Retardant
Country of Origin Taiwan, Province of China
