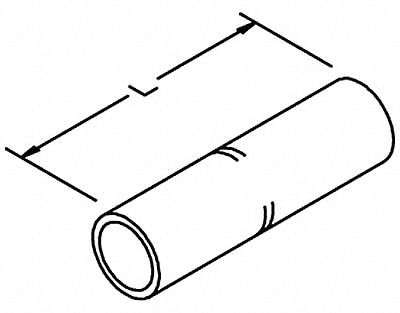

3M 11024 Open Barrel Splice, 1000 kcmil, White Code, 6.13 in, Long Barrel

3M 11024 Open Barrel Splice, 1000 kcmil, White Code, 6.13 in, Long Barrel

UPC: 054007129493 | Harmonization / Schedule B : 8535.90.8040

Country of Origin: Chile | Shipping Weight: 4.2 lbs

$463.32 - $463.32
$463.32
$463.32 - $463.32
$463.32

Open Barrel Splices, Barrel Finish Tin Plated, Barrel Size Long, Color Code White, Die Code S44RT, P44RT, For Conductor Material Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size Not Applicable, Maximum Wire Size 1000 kcmil, Number of Crimps 12, Overall Length 6.13 in, Maximum Operating Temperature 221 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards ANSI, Barrel Inside Diameter 1.17 in, Barrel Outside Diameter 1.5 in

Type Crimp
Color White
Insulation Material None
Maximum Voltage 35 kV
Minimum Operating Temperature 73 Degrees F
Maximum Operating Temperature 221 Degrees F
RoHS Compliant Yes
Material Copper
Standards ANSI
Die Code S44RT, P44RT
Seam Style Seamless
Compatible with Series QS, QS-II, QS-III
For Wire Type Stranded
Compatible with Product Type Copper Conductor
Compatible Installation Tool Model Number 10000-11000
Special Features Built-In Solid Center Oil Stop, Made Of Aluminum For Good Conductivity And Has Corrosion-Resistant Tin Plating, Standard Barrel Ensures Reliable Performance
Number of Crimps 12
For Conductor Material Copper
Termination Style Crimp
Product Series 11000
Indoor/Outdoor Both
Electrical Connector Type Compression Connectors
Barrel Style Long Barrel
For Use With Copper Conductor Only
Finish Tin Plated
Contact Finish Tin
Series QS, QS-II, QS-III
Barrel Finish Tin Plated
Color Code White
Contact Material Copper
Country of Origin Chile
