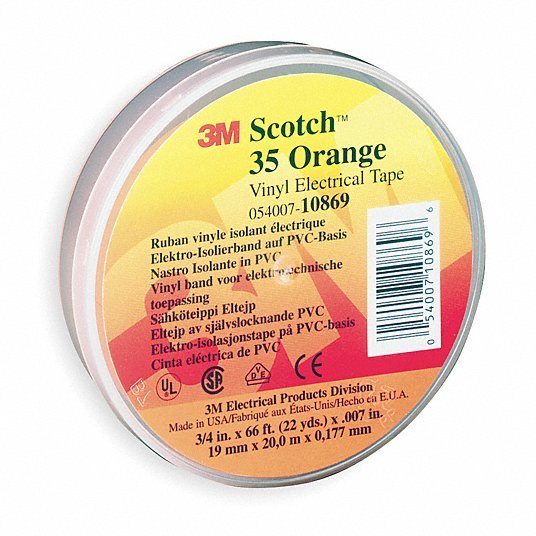

3M 10869 Vinyl Electrical Tape, 35, Scotch, 3/4 in W x 66 ft L, 7 mil thick, Orange, 1 Pack - KVM Tools Inc.

3M 10869 Vinyl Electrical Tape, 35, Scotch, 3/4 in W x 66 ft L, 7 mil thick, Orange, 1 Pack

UPC: 818243865542 | Harmonization / Schedule B : 3919.10.2020

Country of Origin: United States | Shipping Weight: 0.4 lbs

$13.79 - $13.79
$13.79
$13.79 - $13.79
$13.79
Insulating Electrical Tape, General Purpose, Vinyl, Tape Adhesive Material Rubber, 3/4 in, 66 ft, 7 mil, 3M(TM), Scotch(R), Series 35, Orange, Minimum Tape Performance Temperature 32 Degrees F, Maximum Tape Performance Temperature 221 Degrees F, Voltage Rating 600 V, Continuous Roll, Single-Sided


UPC 00054007108696
Tape Color Orange
Performance Temp. Up to 220 Degrees F
Material Backing: Vinyl; Adhesive: Rubber Resin
Tape Tensile Strength 17 lb-in
Tape Adhesive Strength 20 oz/in
Color Orange
Thickness 7 mil
Adhesion Strength 20 oz./in.
Series 35
Tape Shape Continuous Roll
Max. Voltage 600
Tensile Strength 17 lb./in.
Adhesive Rubber
Item Insulating Electrical Tape
Tape Thickness 7.0 mil
Standards ASTM D1000, CSA Certified, RoHS 2002/95/EC, UL 510, UL Listed
Shape Continuous Roll
Temperature Range 32 to 220 Degrees F
UV Resistance No
Tape Backing Material Vinyl
Tape Color Family Orange
Max. Tape Performance Temp. 220 Degrees F
Duct Tape Adhesive Rubber
Tape Adhesive Rubber
Insulation Resistance 1.00 x 10^6 megaohm
Tape Properties Flame-Retardant
Product Form Continuous Roll
Package Quantity 1
Tape Brand 3M(TM)
Maximum Tape Performance Temperature 221 Degrees F
Minimum Tape Performance Temperature 32 Degrees F
Tape Resistance Properties Abrasion-Resistant, Flame-Resistant, Moisture-Resistant, Solvents-Resistant, UV-Resistant
Printed Message Unprinted
Dielectric Strength 1,250 V/mil
Tape Adhesive Format Single-Sided
Tape Type Film
Adhesion to Steel 20 oz/in
Breakdown Voltage 8,750 V
Tape Backing Construction Film
Environment Indoor and Outdoor
Sub-Brand Scotch(R)
Tape Sub-Type General Purpose
Tape Adhesive Material Rubber
Elongation 225 %
Breaking Strength 17 lb/in
Voltage Rating 600 V
Specifications Met ASTM, CSA, RoHS, UL
Adhesive Properties Aggressive Adhesive, Pressure Sensitive Adhesive
Self-extinguishing No
Self-Extinguishing No
Brand 3M(TM)
Max Tape Performance Temp 221 Degrees F
