Blackburn L70 Mechanical Connector 1 Conductors, Copper, 9/32 in Stud Size - KVM Tools Inc.KV3LR08

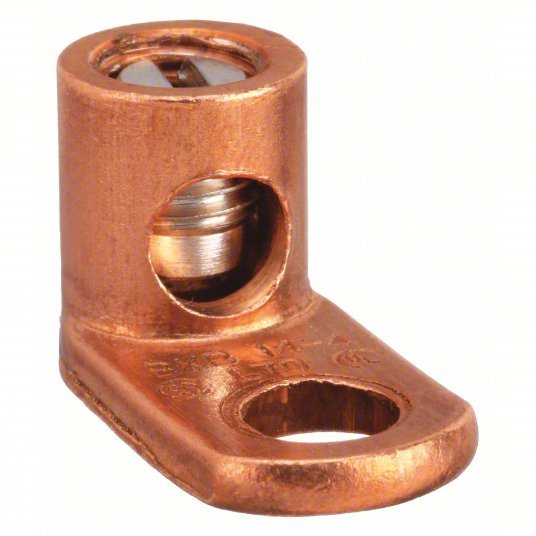

Blackburn L70 Mechanical Connector 1 Conductors, Copper, 9/32 in Stud Size

UPC: 783786130023 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: | Shipping Weight:

$5.15 - $5.15
$5.15
$5.15 - $5.15
$5.15
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, For Stud Size 9/32 in, Head Style Slotted, Number of Holes 1, Hole Diameter 0.28 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 1,000 V, Number of Conductors 1, Number of Terminations 1, Tongue Length 0.66 in, Tongue Width 0.53 in, Tongue Thickness 0.09 in, Connector Type Compact
Item Mechanical Connector
Connector Type Compact
No. of Conductors 1
Material Electrolytic Copper
Head Style Slotted
No. of Holes 1
Screw Material Steel
Standards UL Listed, UL486A/B
Body Material Copper
Screw Finish Zinc Plated
UL Standard UL 486A-486B
For Conductor Material Copper
Connection Orientation Compact
Number of Terminations 1
Number of Conductors 1
Maximum Voltage 1,000 V
Hole Spacing Not Applicable
Maximum Operating Temperature 194 Degrees F
Special Features Cold Forged from Pure Electrolytic Copper With 99 Percent Conductivity
Tongue Thickness 0.09 in
Type Copper Connectors
Standard UL E9809
Insulation None
Features Cold forged from pure electrolytic copper with 99 percent conductivity
