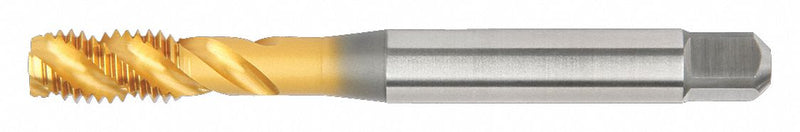

WIDIA GTD VTSFT-TC6049 Spiral Flute Tap, 2"-4.5 UNC, 2B, 5 Flute, Semi-Bottoming Chamfer, High Speed Steel

WIDIA GTD VTSFT-TC6049 Spiral Flute Tap, 2"-4.5 UNC, 2B, 5 Flute, Semi-Bottoming Chamfer, High Speed Steel

UPC: | Harmonization / Schedule B : 8207.40.3000

Country of Origin: Japan | Shipping Weight: 5.04 lbs

$2,075.82 - $2,075.82
$2,075.82
$2,075.82 - $2,075.82
$2,075.82

Spiral Flute Tap, 2"-4-1/2, Semi-Bottoming, UNC, 5 Flutes, TiN

MFR # VTSFT-TC6049
Zoro # G7683720
UPC # -
Country of Origin Japan
Tap Thread Size 2"-4-1/2
Thread Length 2-3/16"
Overall Length 9-13/16"
Tap Dimension Type Inch
Shank Dia. 1-9/16"
Pitch Diameter Limit 2B
Tap Size 2"
65% Thread Drill Size 1.8124 in
Square Size 1.2600 in
Thread Size 2"-4.5
75% Thread Drill Size 1 25/32 in
Shank Length 4 5/16 in
Square Width 1.26 in
Square Length 1.26 in
Shank Diameter 1 37/64 in
Item Spiral Flute Tap
Tap Chamfer Semi-Bottoming
Tap Thread Type UNC
Number of Flutes 5
Tap Finish TiN
List Number VT-SFT
Number of Pieces 1
Tap Material High Speed Steel
Standards DIN 376
Thread Direction Right Hand
Tap Style Spiral Flute
Cutting Direction - Machining Right Hand
Extended Neck Yes
Tap Shank Standard DIN 376
Secondary Material Application ISO Code K, M, N
Spiral Direction Right Hand
Measurement System Fractional Inch
Primary Material Application Steel
Class of Fit 2B
Helix Angle 45 Degrees
Secondary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel
Thread Limit 2B
Threads per Inch 4 1/2
Thread Standard UNC
Series VT-SFT
Shank Type - Machining Straight
Features Form C Semi-Bottoming Chamfer, Tension/Compression Holders
Primary Material Application ISO Code P
Coolant Fed Non-Coolant Through
Material Grade - Machining WU41EG
Shank Type Straight
