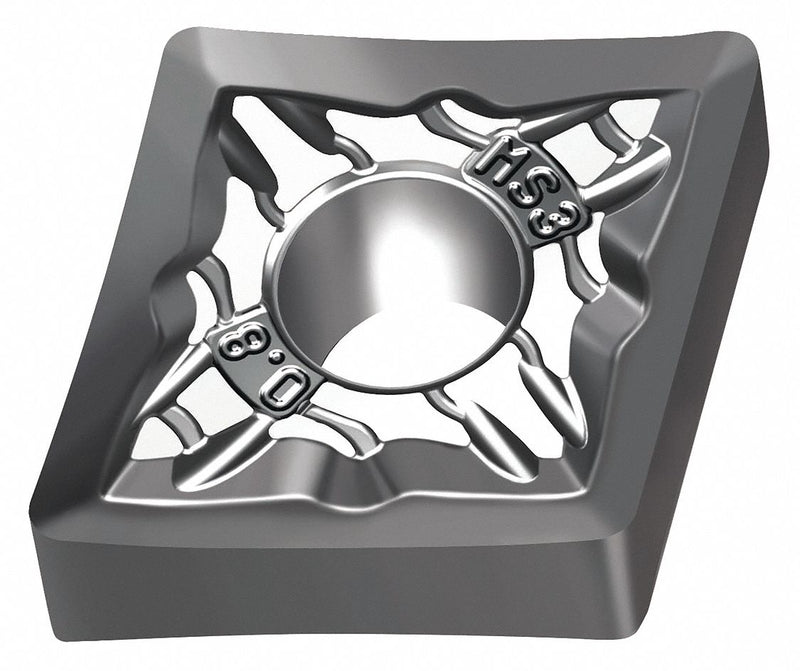

Walter 6890822 Diamond Turning Insert, CNMG431-MS3 WSM10S, CNMG120404-MS3 WSM10S

Walter 6890822 Diamond Turning Insert, CNMG431-MS3 WSM10S, CNMG120404-MS3 WSM10S

UPC: | Harmonization / Schedule B : 8209.00.0030

Country of Origin: Germany | Shipping Weight: 2 lbs

$25.26 - $25.26
$25.26
$25.26 - $25.26
$25.26

Diamond Turning Insert, Chip-Breaker Code MS3, Inscribed Circle 1/2 in, TiAlN+Al2O3+Al, ANSI Code CNMG431-MS3 WSM10S, Clearance Angle 0 Degrees

Insert Shape Diamond
Insert Style CNMG
Inscribed Circle 1/2 in
Chip-Breaker Yes
Grade WSM10S
Insert Material Carbide
Insert Application Medium
Rake Negative
ISO Number CNMG120404-MS3 WSM10S
Cast Iron (K) Compatibility No
Relief Angle 0 Degrees
Steel (P) Compatibility Yes
Workpiece Compatibility Stainless (M), Steel (P), Super Alloy (S)
Stainless (M) Compatibility Yes
ANSI Number CNMG431-MS3 WSM10S
Coating PVD
Hardened (H) Compatibility No
Cutting Direction Neutral
Non Ferrous (N) Compatibility No
Mounting Style Clamp
Super Alloy (S) Compatibility Yes
For Use With Toolholders, Boring Bars
No. of Edges 4
Cutting Application Turning
Included Angle 80 Degrees
ANSI Code CNMG431-MS3 WSM10S
Shape Rhombic
Measurement System Fractional Inch
Chip-Breaker Code MS3
Insert Holding Type Straight Hole
Number of Cutting Edges 4
Primary Material Application Nickel, Stainless Steel, Titanium
Manufacturer Grade WSM10S
Clearance Angle 0 Degrees
Finish - Machining TiAlN+Al2O3+Al
Material - Machining Carbide
Primary Material Application ISO Code M, S
Material Carbide
Country of Origin Germany
