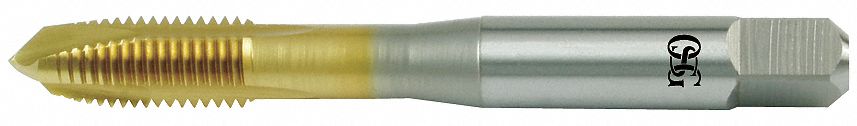

OSG 1101517605 Spiral Point Tap, 5/8"-11 UNC, H3, 2B-3B, 4-Flute Plug Chamfer, Cobalt TiN-Coated, 3-13/16 in OAL, Right Hand, for Steel/Stainless

OSG 1101517605 Spiral Point Tap, 5/8"-11 UNC, H3, 2B-3B, 4-Flute Plug Chamfer, Cobalt TiN-Coated, 3-13/16 in OAL, Right Hand, for Steel/Stainless

UPC: | Harmonization / Schedule B : 8207.40.0000

Country of Origin: Mexico | Shipping Weight: 0.22 lbs

$132.71 - $132.71
$132.71
$132.71 - $132.71
$132.71

Spiral Point Tap, Thread Size 5/8 In.-11, UNC, Overall Length 3 13/16 in, Cobalt, TiN coated, Right Hand cutting, Thread Length 1 13/32 in, Thread Limit H3, Class of Fit 2B-3B, Number of Flutes 4, Plug Chamfer, Spiral Point style for through holes in steel and stainless steel.

List Number 11015
Tap Style Spiral Point
Tap Chamfer Plug
Thread Size 5/8"-11
Thread Standard UNC
Thread Limit H3
Class of Fit 2B-3B
Thread Direction Right Hand
Thread Length 1-13/32 in
Overall Length 3-13/16 in
Number of Flutes 4
Spiral Direction Neutral
Material Cobalt
Finish/Coating TiN
Shank Type Square
Shank Diameter 31/64 in
Square Width 0.359 in
Square Length 0.359 in
Drill Bit Size 17/32 in
Tap Application Through Hole
Coolant Fed Non-Coolant Through
Primary Material Application Steel; Stainless Steel
Country of Origin Mexico
