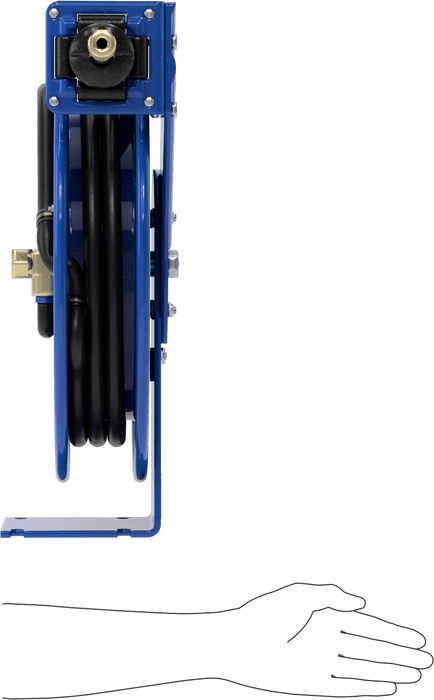

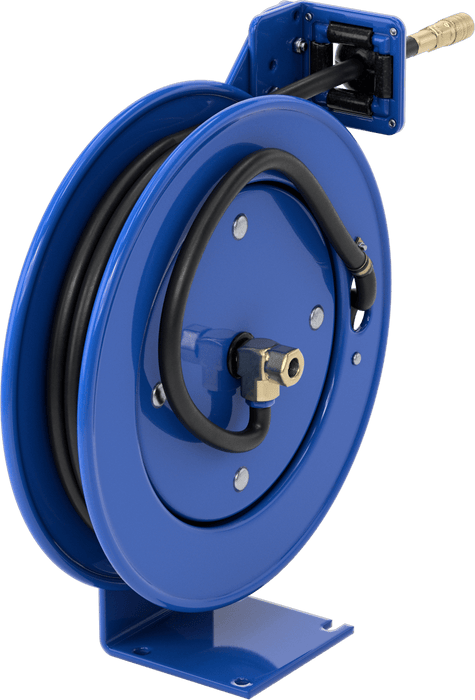

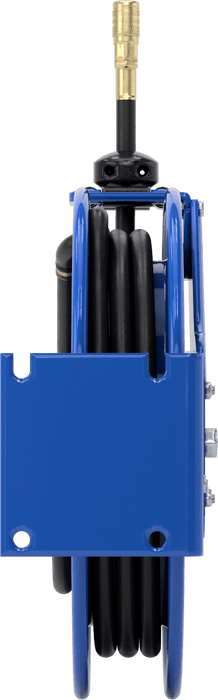

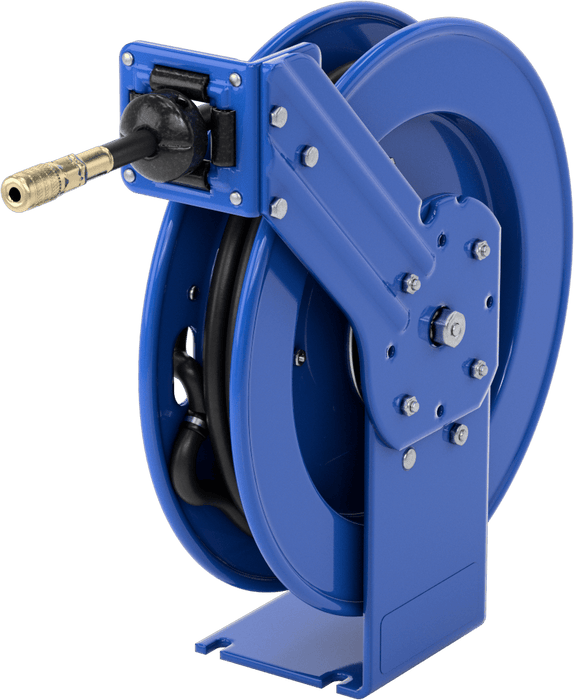

McMaster 5476K112 Air Hose Reel, Black, with Brass 1/4 Quick-Disconnect Socket x 3/8 NPT Fittings, 35 Feet Long

McMaster 5476K112 Air Hose Reel, Black, with Brass 1/4 Quick-Disconnect Socket x 3/8 NPT Fittings, 35 Feet Long

UPC: | Harmonization / Schedule B : 4009.32.0050

Country of Origin: United States | Shipping Weight: 30 lbs

$907.11 - $907.11
$907.11
$907.11 - $907.11
$907.11

Hose is EPDM, which is the most common material for air applications. Pull the hose out of the reel and it locks in place; give it a quick tug and the hose retracts. Reels are best suited for applications where the hose is pulled straight out of the reel.

Additional mounting brackets (sold separately) allow reels to pivot or mount to a beam.

For Use With Air
Temperature -40° F to 200° F
Connection Outlet Hose x Inlet Pipe
Coupling Size 1/4
Pipe Size 3/8
Fittings Brass Quick Disconnect Female Industrial Socket x Brass Threaded NPT Female
Threaded Female Fitting Seal Type Buna-N Rubber Gasket
Hose ID 3/8"
Hose OD 11/16"
Hose Length 35 ft.
Bend Radius 4"
Maximum Pressure @ Temperature 300 psi @ 72° F
Hose Color Black
Clarity Opaque
Hose Material EPDM
Cover Material EPDM
Interior Texture Smooth
Reinforcement Yarn
Mounting Location Ceiling, Floor, Wall
Mounting Base Length 6"
Mounting Base Width 6"
Mounting Hole Diameter 1/2"
Number of Mounting Holes 4
Fasteners Included No
Reel Type Open
Winding Method Automatic
Reel Height 18 3/4"
Reel Width 6 3/4"
Reel Depth 17 1/4"
Reel Material Powder-Coated Steel
Reel Color Blue
Hose Included Yes
Country of Origin United States
DFARS Compliance Specialty Metals COTS-Exempt
Export Control Classification Number (ECCN) EAR99
REACH Compliance Not Compliant
RoHS Compliance RoHS 3 (2015/863/EU) Compliant
Schedule B Number 400932.0050
USMCA Qualifying Yes
