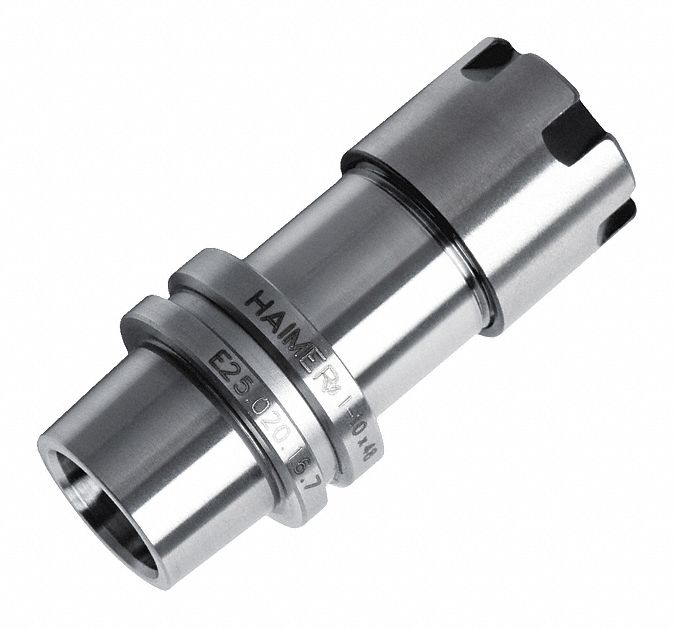

Haimer E25.025.16.7 Collet Chuck, HSK25E Taper, ER16, 1.693 in Projection

Haimer E25.025.16.7 Collet Chuck, HSK25E Taper, ER16, 1.693 in Projection

UPC: | Harmonization / Schedule B : 8466.10.0175

Country of Origin: Germany | Shipping Weight: 1 lbs

$994.62 - $994.62
$994.62
$994.62 - $994.62
$994.62

HAIMER Collet Chuck: HSK25E Taper, ER16, 1.693 in Projection.

Product Type HSK Collet Chuck
Taper Size HSK25E
For Collet Series ER16
For Min Collet Size 0.5 mm
For Max Collet Size 10 mm
Projection 1.693 in
Nut Diameter 0.866 in
T.I.R. Tolerance 0.003 mm
Max Speed 25,000 RPM
Balance Rating G2.5
Coolant Supply Coolant Through
Includes Nut Nut Included
Compatible Collet Wrench ER Collets
Standards DIN 69882-8; DIN 69893-5; ISO 15488
Country of Origin Germany
