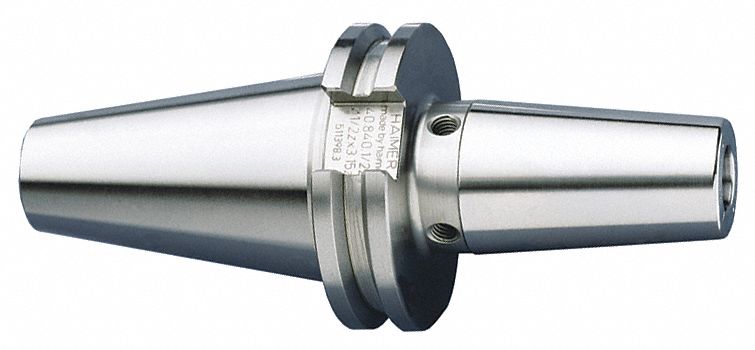

Haimer 50.842.1z.4 Shrink Fit Tool Holder, CV50 Taper, 6.3 in Projection

Haimer 50.842.1z.4 Shrink Fit Tool Holder, CV50 Taper, 6.3 in Projection

UPC: | Harmonization / Schedule B : 8466.10.0175

Country of Origin: Germany | Shipping Weight: 3.5 lbs

$1,197.08 - $1,197.08
$1,197.08
$1,197.08 - $1,197.08
$1,197.08

HAIMER Shrink Fit Tool Holder: CV50 Taper, 6.3 in Projection.

Taper Size CV50
Projection 6.3 in
Balanced to RPM G 2.5@25,000 RPM
Nose Diameter 1.732 in
Hole Diameter 1 in
Shank Diameter 1.732 in
Tool Depth 2.28 in
Coolant Fed Coolant Through
List Number 50.842
Includes Cool Jet
Compatible with Product Type All Kind of Shrink Fit Units; HSS and Solid Carbide Tools
Features Extreme Clamping Torque by High Pressing in the Clamping Bore; Hardened 54-2 HRC; Heat Resistant Hot-Working Steel; High Runout Accuracy (<0.003 mm); Reinforced Shank at Long Tool Holders; Shank Tolerance H6; Short Chamfer; Threaded Bores for Simple and Fast Balancing with Screws
Country of Origin Germany
