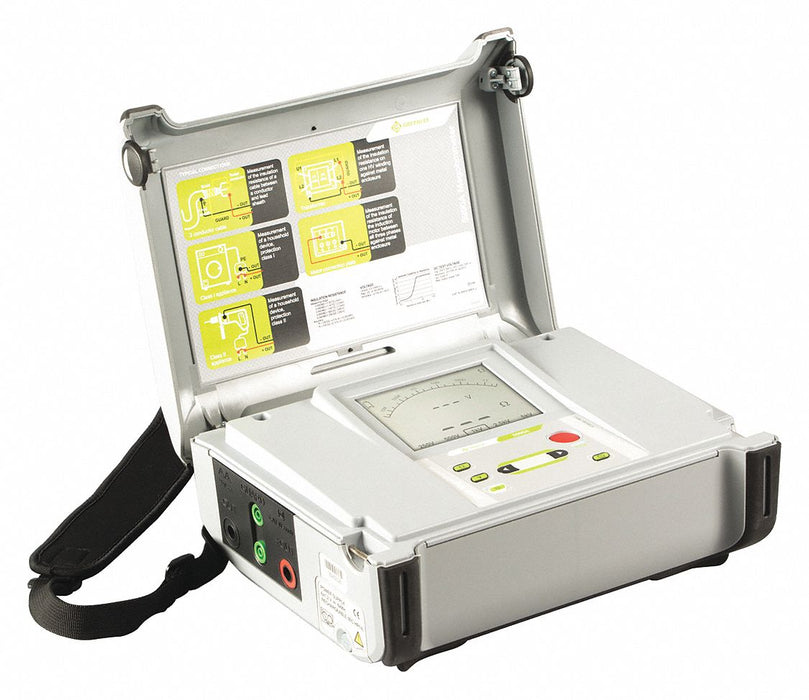

Greenlee 5990A Megohmmeter, Test Voltage 250V/500V/1,000V/2,500V/5,000V DC, CAT IV 600V, Battery, LCD Display

Greenlee 5990A Megohmmeter, Test Voltage 250V/500V/1,000V/2,500V/5,000V DC, CAT IV 600V, Battery, LCD Display

UPC: 783310084716 | Harmonization / Schedule B : 9030.33.3400

Country of Origin: Slovenia | Shipping Weight: 13.97 lbs

$3,795.42 - $3,795.42
$3,795.42
$3,795.42 - $3,795.42
$3,795.42

Megohmmeter, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT IV 600V, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning Yes, Includes Batteries Rechargeable/NIMH, Carrying Case with Shoulder Strap, Heavy Duty Zipper Test Leads with Alligator Clips Test, Lead Case Instrument Should Strap, Maximum Insulation Resistance 999 gigohm, Minimum Insulation Resistance 0.12 megaohm, Parameters Measured Insulation Resistance

Tool Length 12.2 in
Tool Height 9.8 in
Battery Size C
Tool Width 5.1 in
Manufacturer Warranty Length Limited Lifetime
Power Source Battery
Includes Batteries Rechargeable/NIMH, Carrying Case with Shoulder Strap, Heavy Duty Zipper Test Leads with Alligator Clips Test, Lead Case Instrument Should Strap
Capacitance Range No
Auto Power Off No
Auto Ranging No
Output Test Voltage 250/500/1000/2500/5000V DC
Accuracy 100 gigaohms to 999 gigaohms - +/- (10% + 3 digits), 5 kiloohm to 99.9 gigaohms - +/- (5% + 3 digits)
Features Auto-Calibration on Start-up, Hazardous Voltage Warning Icon Greater Than 70 volts, Onboard Battery Charger, Test: Insulation, Voltage and Frequency
Live Circuit Detection 600V AC/V DC
Bluetooth Compatible No
Testing Functions Insulation
Test Voltage 1,000V DC, 2,500V DC, 250V DC, 5,000V DC, 500V DC
Maximum Insulation Resistance 999 gigohm
Parameters Measured Resistance
IP Rating IP40
Resistance Accuracy +/-10%
Test Current 5 mA
Display Type Digital
Insulation Resistance Resolution 0.12 megaohm to 999 gigaohm
Display Screen Type LCD
Standards IEC 60664, IEC 61010-1
Backlit Digital Display Yes
Capacitance Auto Discharge Yes
Greater Than 30V Warning Yes
CAT Safety Rating CAT IV 600V
Minimum AC Voltage Measured 0 V
Minimum Insulation Resistance 0.12 megaohm
Includes Batteries Yes
Operating Voltage 600V AC
Waterproof No
Maximum Operating Temperature 122 Degrees F
Maximum AC Voltage Measured 600 V
Maximum Operating Temperature 122 Degrees F
