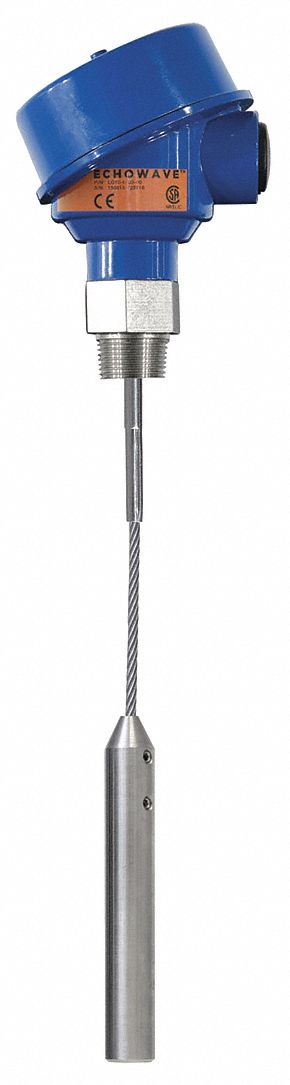

Flowline LG11-2003-01 Cable Guided Wave Radar, Liquid Level Sensor Transmitter, Vertical, 3/4 in NPT, NPT, NEMA 4

Flowline LG11-2003-01 Cable Guided Wave Radar, Liquid Level Sensor Transmitter, Vertical, 3/4 in NPT, NPT, NEMA 4

UPC: | Harmonization / Schedule B : 9026.10.2080

Country of Origin: United States | Shipping Weight: 3.35 lbs

$1,961.28 - $1,961.28
$1,961.28
$1,961.28 - $1,961.28
$1,961.28

Cable Guided Wave Radar, Product Type Liquid Level Sensor Transmitter, Connection Size 3/4 in, For Media Type Oils, Wastewater, Water, Connection Type NPT, Body Material Aluminum, Accuracy +/-3 mm, Range 18 ft, Stem Length 216 in, Operating Pressure - Maximum 250 psi, Media Temperature - Maximum 302 Degrees F, Mounting Orientation Vertical, Enclosure Rating NEMA 4, Number of Outputs - Analog 1, Float Diameter 7/8 in, Float Length 216 in, Output Wire Configuration 3-Wire

Classification General Purpose
Mounting 3/4 in G Thread, 3/4 in NPT
Range 18 ft
Accuracy +/-3 mm
Resolution 2 mm
Max. Pressure 250 psi
Dead Band 2 in Bottom, 4 in Top
Enclosure Material Aluminum
Display None
Input Voltage 18 to 30V DC
Output 4 to 20mA, 3-wire
Enclosure Rating NEMA 4
Material 316L Stainless Steel
Standards CE, CRN, CSA, NRTL, RoHS
Temp. Range -40 to 302 Degrees F
Configuration WebCal
Stem Material 316 Stainless Steel
Voltage 18 to 30V DC
Body Material Aluminum
Float Material 316 Stainless Steel
Product Type Liquid Level Sensor Transmitter
Output Wire Configuration 3-Wire
Output Voltage Range 4 to 20mA
Media Temperature - Maximum 302 Degrees F
Probe Material 316 Stainless Steel
Mounting Orientation Vertical
Number of Outputs - Analog 1
Connection Type NPT
For Media Type Oils, Wastewater, Water
Operating Pressure - Maximum 250 psi
Nameplate Voltage 18/30V DC
Country of Origin United States
