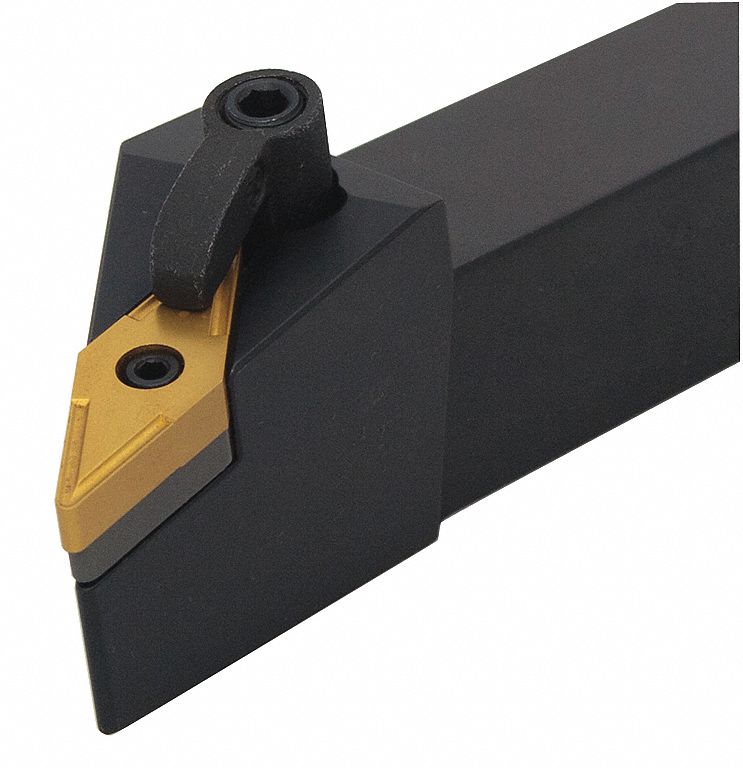

Dorian 73310158162 Indexable Thread Turning Tool Holder

Dorian 73310158162 Indexable Thread Turning Tool Holder

UPC: | Harmonization / Schedule B : 8466.10.0175

Country of Origin: United States | Shipping Weight: 2.8 lbs

$146.49 - $146.49
$146.49
$146.49 - $146.49
$146.49

Indexable Thread Turning Tool Holder, MTVOR20-5D-A, Cutting Direction Right Hand, Shank Square, Shank Width 1-1/4 in, Shank Height 1-1/4 in, Overall Length 6 in, Insert Shape TNMA-543, Inscribed Circle 0.625 in, Insert Thickness 0.25 in, Width Offset 1.5 in, Mounting Style Multi-Lock, Clamp CL-6, Clamp Screw XNS-36, Insert Screw NL-56

Shank Square
Insert Shape TNMA-543
Clamp Screw XNS-36
Mounting Style Multi-Lock
Inscribed Circle 0.625 in
Clamp CL-6
Style MTVOR20-5D-A
Cutting Direction Right Hand
Insert Screw NL-56
Shank Shape Square
Cutting Application On Edge Threading and Grooving
Insert Style TNMA
Insert Holding Type Multi-Lock Clamping
Offset Shank Yes
Toolholder Style MTVO
Compatible Hardware CL-6 Clamp, NL-56 Lock Pin, XNS-36 Clamp Screw
ISO Number MTVOR20-5D-A
ANSI Code MTVOR20-5D-A
Country of Origin United States
