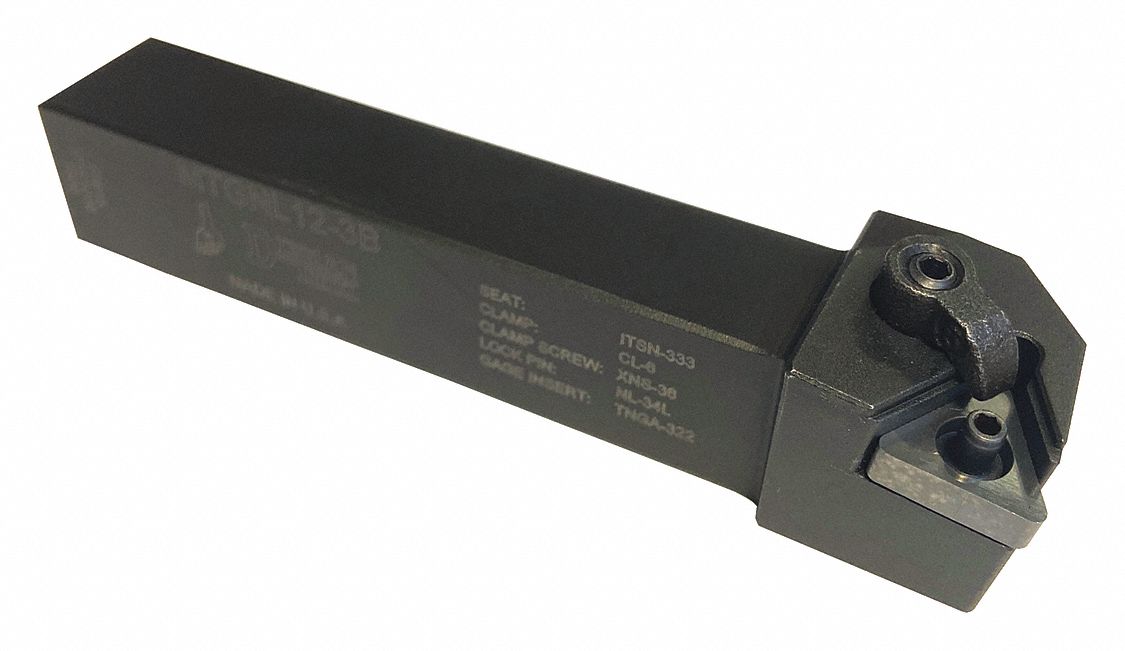

Dorian Indexable Turning Toolholder MTGNL12-3B

Dorian 73310150815 Indexable Turning Toolholder, MTGNL12-3B, TNMG Insert, 90° Approach, Left Hand, 4-1/2 in OAL

UPC: | Harmonization / Schedule B : 8466.10.0175

Country of Origin: United States | Shipping Weight: 0.79 lbs

$93.60 - $93.60
$93.60
$93.60 - $93.60
$93.60

Indexable Turning Toolholder, MTGN, Insert Style TNM., Overall Length 4-1/2 in

Clamp Screw XNS-36
Clamp CL-6
Shank Square
Style MTGNL12-3B
Insert Shape Triangle
Rake Negative
Type TNMG Holder
Insert Screw NL-34L
Shim ITSN-322
Cutting Direction Left Hand
Insert Holding Type Clamp and Lock Pin
ISO Number MTGNL123B
Insert Clearance Angle 0 Degrees
Approach Angle 90 Degrees
ANSI Code MTGNL123B
Cutting Application Turning
Insert Inscribed Circle 3/8 in
Insert Style TNM.
Features Hardened to 44 HRC
Side Cutting Edge Angle 0 Degrees
Toolholder Style MTGN
Shank Material Alloy Steel
Lead Angle 0 Degrees
Rake Angle 7 Degrees
Inscribed Circle 0.375"
Mounting Style Multi-Lock
Country of Origin United States
