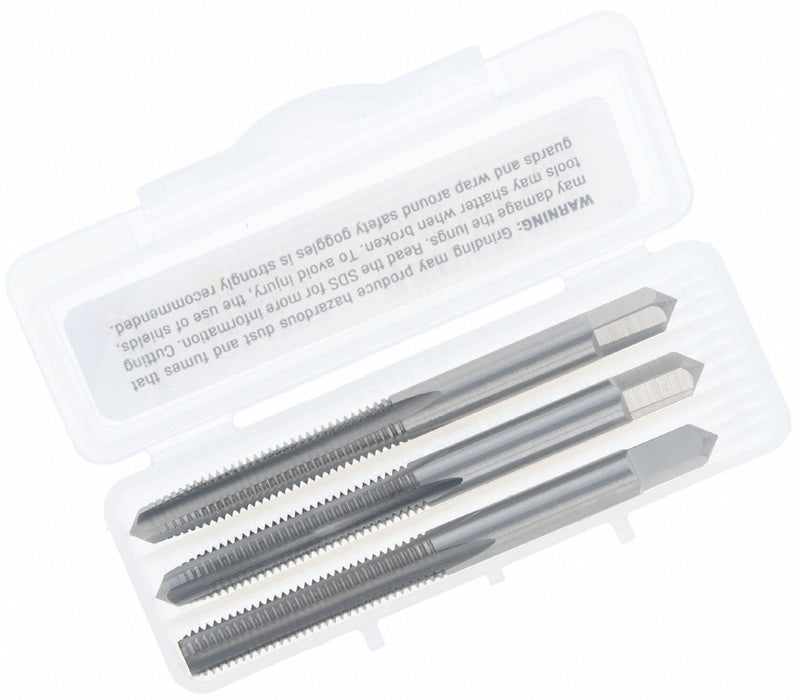

Cleveland C54377 Hand Tap Kit, M5 x 0.8 Metric, 3-Piece (Bottoming/Plug/Taper), HSS, Uncoated, 4-Flute

Cleveland C54377 Hand Tap Kit, M5 x 0.8 Metric, 3-Piece (Bottoming/Plug/Taper), HSS, Uncoated, 4-Flute

UPC: 697334543770 | Harmonization / Schedule B : 8207.40.6000

Country of Origin: United States | Shipping Weight: 0.065 lbs

$74.32 - $74.32
$74.32
$74.32 - $74.32
$74.32

Three Piece Tap Kit, Tap Thread Size M5-0.80, High Speed Steel, Bright (Uncoated), Thread Standard Metric, Thread Length 15/16 in, Overall Length 2 3/8 in, 75 Percent Thread Drill Size 4.20 mm, Thread Limit D4, Class of Fit 6H, Thread Direction Right Hand, Number of Flutes 4

Tap Material High Speed Steel
Tap Chamfer Bottoming, Plug, Taper
Tap Style Straight Flute (Hand)
Number of Flutes 4
Thread Direction Right Hand
Standards USCTI Table 302A
Number of Pieces 3
Tap Finish Bright (Uncoated)
Tap Thread Type Metric
List Number 1004
Includes (1) Bottoming Tap, (1) Plug Tap, (1) Taper Tap
Class of Fit 6H
Thread Pitch 0.80mm
Thread Standard Metric
Series 1004
Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Number Of Taps 3
Features Taper-Plug-Bottoming
Tap Type Straight Flute
Tap Shank Standard USCTI Table 302A
Primary Material Application ISO Code K, M, N, P
Measurement System Metric
Coolant Fed Non-Coolant Through
Thread Limit 2B
