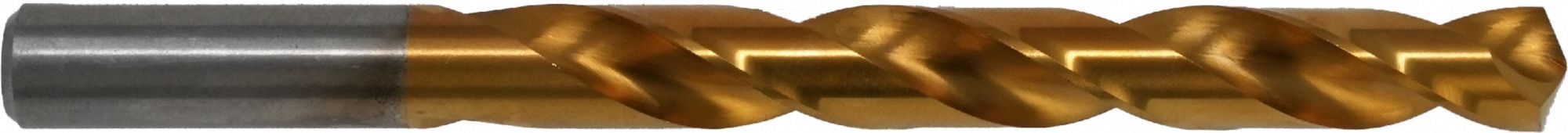

Chicago-Latrobe 47960 550ASP-TN Heavy-Duty Cobalt Jobber Length Drill Bit, 4 mm, 135° Split Point, TiN, HSS-Co M35, Spiral Flute

Chicago-Latrobe 47960 550ASP-TN Heavy-Duty Cobalt Jobber Length Drill Bit, 4 mm, 135° Split Point, TiN, HSS-Co M35, Spiral Flute

UPC: 662355479605 | Harmonization / Schedule B : 8207.50.4060

Country of Origin: United States | Shipping Weight: 0.15 lbs

$8.47 - $8.47
$8.47
$8.47 - $8.47
$8.47

Jobber Length Drill Bit, Drill Bit Size 4 mm, Drill Bit Point Angle 135 Degrees, Cobalt, TiN finish, Decimal Equivalent 0.1575, Metric, Drill Bit Point Type Split Point, Non-Coolant Through, Number of Coolant Holes 0. Heavy-Duty cobalt HSS-Co 5%-M35 for stainless steel, alloy steel, titanium and abrasion-resistant applications.

Drill Bit Point Angle 135 Degrees
Number of Flutes 2
Material - Machining Cobalt
Cutting Direction Right Hand
Finish - Machining TiN
Shank Type - Machining Straight
Standards DIN 338, NAS 907 Type B
List Number 550ASP-TN
Decimal Equivalent 0.1575
Application Stainless Steel, Alloy Steel, Titanium, for Abrasion Resistance
Flute Type Spiral
Coolant Fed Non-Coolant Through
Measurement System Metric
Drill Style Jobber Drill
Helix Angle 21 Degrees to 34 Degrees
Overall Length 75 mm
Drill Bit Size 4 mm
Shank Dia. 4 mm
Flute Length 43 mm
Drill Length Class Jobber-Length
Drill Diameter Tolerance +0.0000 in/-0.0007 in
Shank Length 32 mm
Depth:Dia. Ratio 4xD
