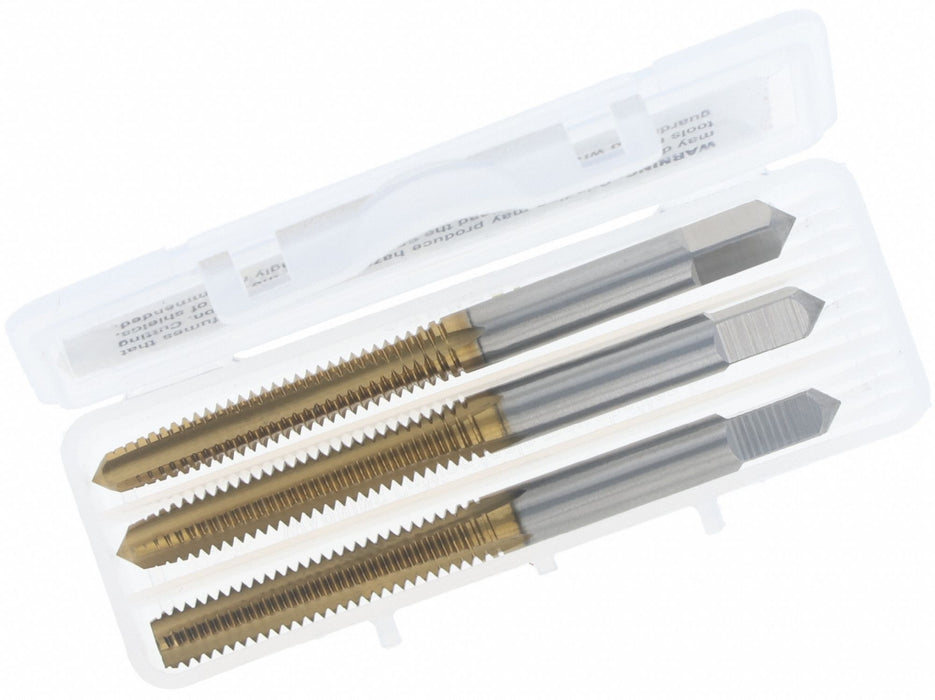

Chicago-Latrobe 343508 Hand Tap Kit, M5 x 0.8 Metric, 3-Piece (Bottoming/Plug/Taper), TiN HSS, 4-Flute

Chicago-Latrobe 343508 Hand Tap Kit, M5 x 0.8 Metric, 3-Piece (Bottoming/Plug/Taper), TiN HSS, 4-Flute

UPC: 093367435080 | Harmonization / Schedule B : 8207.40.6000

Country of Origin: United States | Shipping Weight: 0.065 lbs

$68.33 - $68.33
$68.33
$68.33 - $68.33
$68.33

Three Piece Tap Kit, Tap Thread Size M5-0.80, High Speed Steel, TiN, Thread Standard Metric, Thread Length 15/16 in, Overall Length 2 3/8 in, Thread Limit D4, Class of Fit 6H, Thread Direction Right Hand, Number of Flutes 4

Tap Material High Speed Steel
Tap Chamfer Bottoming, Plug, Taper
Tap Style Straight Flute (Hand)
Number of Flutes 4
Thread Direction Right Hand
Standards USCTI Table 302A
Number of Pieces 3
Tap Finish TiN
List Number HTGP-3PC
Tap Thread Type Metric
Includes (1) Bottoming Tap, (1) Plug Tap, (1) Taper Tap
Primary Material Application ISO Code K, M, N, P
Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Measurement System Metric
Number Of Taps 3
Thread Standard Metric
Coolant Fed Non-Coolant Through
Features Taper-Plug-Bottoming
Tap Type Straight Flute
Thread Pitch 0.80mm
Class of Fit 6H
