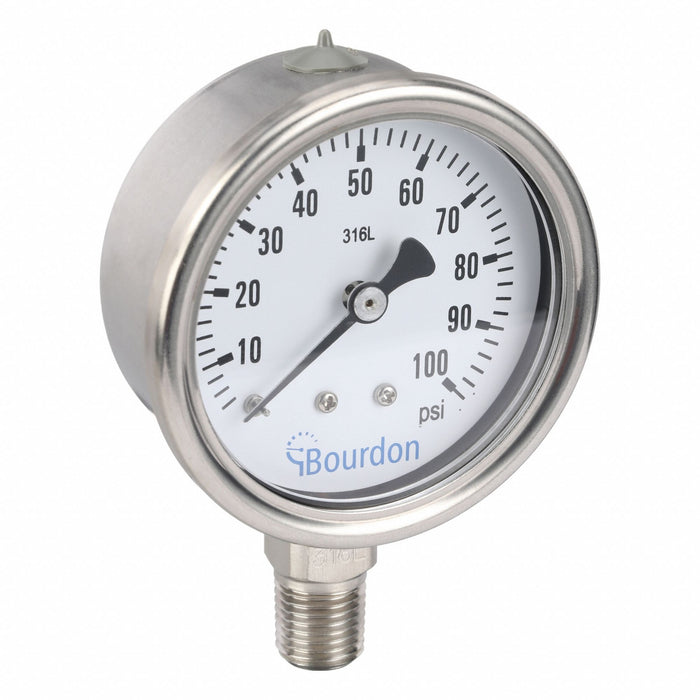

Bourdon MEX3-D50.H21/0133 Industrial Pressure Gauge 0-100 psi

Bourdon MEX3-D50.H21/0133 Industrial Pressure Gauge, 0-100 psi, 2-1/2 in Dial, 1/4 in NPT Bottom, 316L Stainless Steel, IP65

UPC: | Harmonization / Schedule B : 9026.20.4000

Country of Origin: France | Shipping Weight: 0.35 lbs

$117.59 - $117.59
$117.59
$117.59 - $117.59
$117.59

Pressure Gauge, Accuracy +/-1.60 Percent, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, Dry Dampening Feature Not Applicable, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No, Panel-Mountable No, Socket Material 316L Stainless Steel, Sensor Material 316L Stainless Steel, Accuracy Grade EN 837-1, Series MEX3

Accuracy +/-1.60%
Process Connection Location Bottom
Process Connection Type NPT
Application Industrial
Gauge Case Material 304 Stainless Steel
Series MEX3
Lens Material Polycarbonate
Primary Pressure Range 0 to 100
Primary Scale Units psi
IP/NEMA Rating Not Rated
Liquid-Filled Case No
Hazardous Location Rating Not Rated
Panel-Mountable No
Blowout Safety Back No
Gauge Socket Material 316L Stainless Steel
Range 0 to 100 psi
Includes Vent Plug
Gauge Lens Material Plastic
Graduations 10 psi
Gauge Sensor Material 316L Stainless Steel
Gauge Secondary Range Values -100 to 0
Gauge Primary Range Units psi
Calibration Certificate Included No
Gauge Secondary Range Units Bar
Gauge Primary Range Values 0 to 100
Liquid Filled No
Gauge Connection Location Bottom
Case Color Metallic
Gauge Connection Type MNPT
Gauge Primary Range Numbered Graduations 2
Gauge Special Options Field Liquid Fillable
Gauge Primary Range Smallest Graduation 10
For Use With Industrial Applications, Media Compatible
Gauge Case Color Polished Stainless Steel
Connection Location Lower
Gauge Accuracy +/-1.60%
Operating Temp. Range -4 Degrees to 158 Degrees F
Characteristics Crimped Bezel
Smallest Graduation 2 psi
Case Material Stainless Steel
Socket Material 316L Stainless Steel
Standards ATEX Ex II 2 GDc-IM2c, EN 837-1
Connection Type MNPT
Removable Bezel No
Pressure Range Type Compound
Sensor Material 316L Stainless Steel
Field Fillable No
Includes Vent Plug Yes
Bezel Mounting Type Crimped
Dial Color White
Non-Sparking Yes
Pressure Gauge Type Industrial Pressure Gauge
Accuracy Grade EN 837-1
Process Connection Gender Male
IP Rating IP65
Operating Temperature Range -4 Degrees to 158 Degrees F
