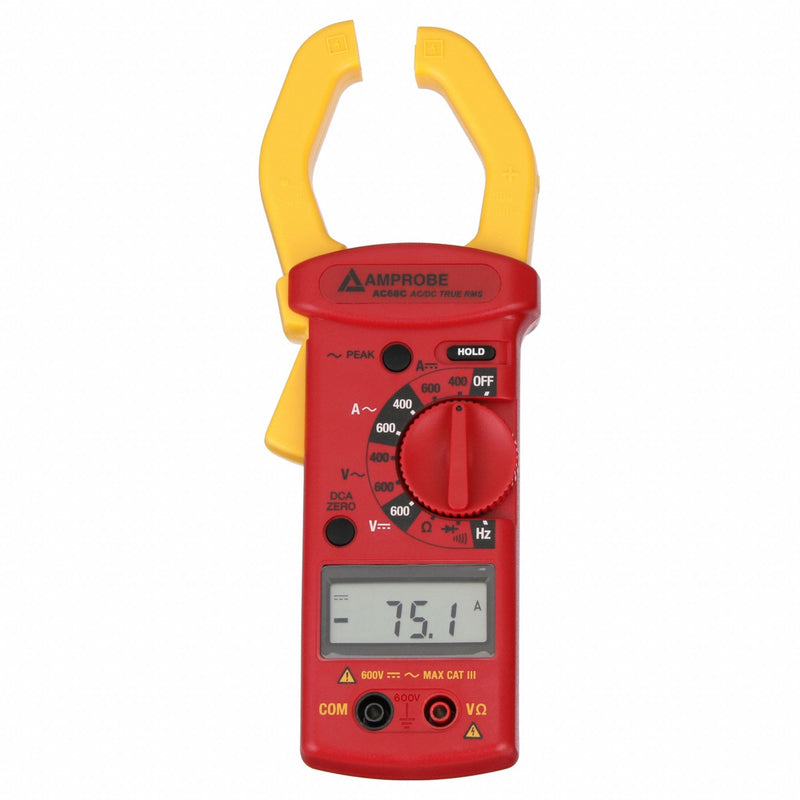

Amprobe AC68C Digital Clamp Meter, TRMS, CAT II 600V/CAT III 300V, 600 A Max AC Current Measurement

Amprobe AC68C Digital Clamp Meter, TRMS, CAT II 600V/CAT III 300V, 600 A Max AC Current Measurement

UPC: 095969365505 | Harmonization / Schedule B : 9030.39.0100

Country of Origin: Taiwan | Shipping Weight: 1.55 lbs

$574.10 - $574.10
$574.10
$574.10 - $574.10
$574.10

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT II 600V, CAT III 300V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 600 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No

Digital/Analog Digital
Max. AC Amps 600
Clamp Meter Jaw Style Clamp On
Max. DC Volts 600 V
Max. Ohms 4,000
Jaw Capacity 1.6 in (41 mm)
Safety Rating CAT II 600V, CAT III 300V
Display LCD
Jaw Opening 1.57 in
Max. DC Amps 600
Max. AC Volts 600 V
Calibration Frequency 60 Hz
Battery Type 9V
Frequency Counter 20 KHz; 4 KHz
Includes Carrying Case, Test Leads
Peak Hold Yes
Audible Continuity Yes
Operating Temp. 32 Degrees to 104 Degrees F
Data Hold Yes
Auto Power Off Yes
AC Response TRMS
Auto Ranging Yes
Special Features 8 Functions/11 Ranges, DC Auto Zero, Low Battery Indication, Manual Function and Range Selection with Rotary Selector, Max Reading of 3999
Diode Test Yes
AC Current Accuracy +/-2.0% + 5 Digits
Counts 4,000
Data Logging Yes
Maximum AC Voltage Measurement 600 V
Batteries Included Yes
Intrinsically Safe No
Basic DC Current Accuracy +/-2 % of Reading + 5 Digits
DC Voltage Measurement Resolution 1 V
Maximum DC Voltage Measurement 600 V
Minimum AC Voltage Measurement 0.1 V
Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance
Maximum AC Current Measurement 600 A
Waterproof No
Basic AC Current Accuracy +/-2 % of Reading + 5 Digits
Thermal Imaging No
Maximum DC Current Measurement 600 A
Frequency Measurement Accuracy +/-0.50% of Reading + 5 Digits
AC Voltage Measurement Resolution 0.1 V
AC Current Measurement Resolution 0.1 A
Maximum Frequency Measurement 20 kHz
Jaw Style Clamp
Basic DC Voltage Accuracy +/-0.75% of Reading + 2 Digits
Instrument Counts 4,000
Dustproof No
Minimum AC Current Measurement 0.1 A
Current Leakage Testing No
Minimum Frequency Measurement 4 kHz
Frequency Measurement Resolution 4 kHz
Display Type LCD
AC Response Calculation TRMS
Minimum DC Current Measurement 0.1 A
Battery Access Yes
Maximum Resistance Measurement 4 kiloohm
Bluetooth Compatible No
Resistance Measurement Resolution 4 kiloohm
Resistance Measurement Accuracy +/-1 % of Reading + 5 Digits
Basic AC Voltage Accuracy +/-1.20% of Reading + 5 Digits
Removable Screen No
DC Current Measurement Resolution 0.1 A
Calibration Certificate Included No Certification Included
Minimum DC Voltage Measurement 1 V
CAT Safety Rating CAT II 600V, CAT III 300V
Minimum Resistance Measurement 1 ohm
Includes Auto Sensing No Auto Sensing Included
Jaw Detachability Fixed
Country of Origin Taiwan, Province of China
