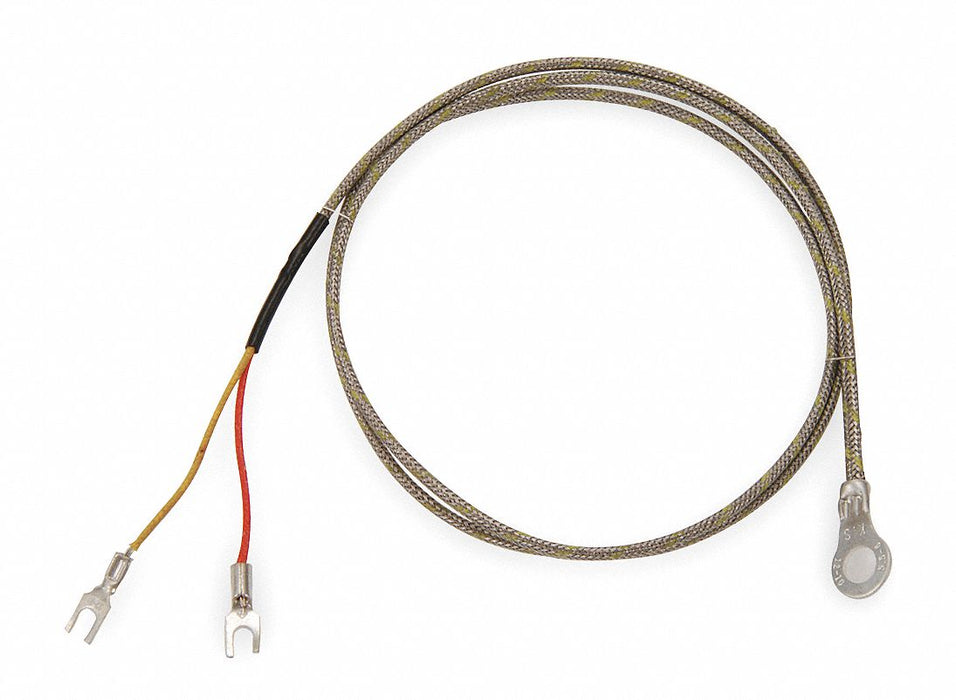

Tempco TRW00113 Ring Thermocouple Type K

Tempco TRW00113 Ring Thermocouple, Type K, 32 to 2,300°F, +/-2.2°C Accuracy, Spade Lugs

UPC: | Harmonization / Schedule B : 9025.19.8085

Country of Origin: United States | Shipping Weight: 0.27 lbs

$29.14 - $29.14
$29.14
$29.14 - $29.14
$29.14

Ring Thermocouple, Type K, Grounded, For Application Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical, Surface Mount Ring, Spade Lugs, Cable Length 4 ft, 32 Degrees to 2,300 Degrees F/0 Degrees to 1,260 Degrees C, Thermocouple

Grounded / Ungrounded Grounded
Thermocouple Type Type K
Temp. Limit (Deg. F) 900
Thermocouple Element 20 AWG
Plug or Connector Type 1/4 in Ring Terminal
Construction 1/4 in Ring Attached to Thermocouple Wire
Error Accuracy (%) (Over 293 Degrees C) +/-0.75
Error Accuracy (Deg. C) +/-2.2 Below 293 Degrees
Insulation Fiberglass
Connector Type Spade Lugs
For Air No
Accuracy +/-2.2 Degrees C or +/-0.75%
Process Mounting Surface Mount Ring
Maximum Wire Gauge 0.25 mm
For Solids Yes
For Application Appliances, Duct, Food and Beverage, HVAC, Ovens, Packaging, Pharmaceutical
Junction Type Grounded
Cable Material Fiberglass with Stainless Steel Braid
Sensor Type Thermocouple
For Surfaces Yes
For Gases No
Temperature Range 32 Degrees to 2,300 Degrees F/0 Degrees to 1,260 Degrees C
Includes Thermowell No
For Liquids and Gels No
Maximum Temperature °F 2,300 Degrees F
Maximum Temperature °C 1,260 Degrees C
Minimum Temperature °F 32 Degrees F
Minimum Temperature °C 0 Degrees C
Country of Origin United States
