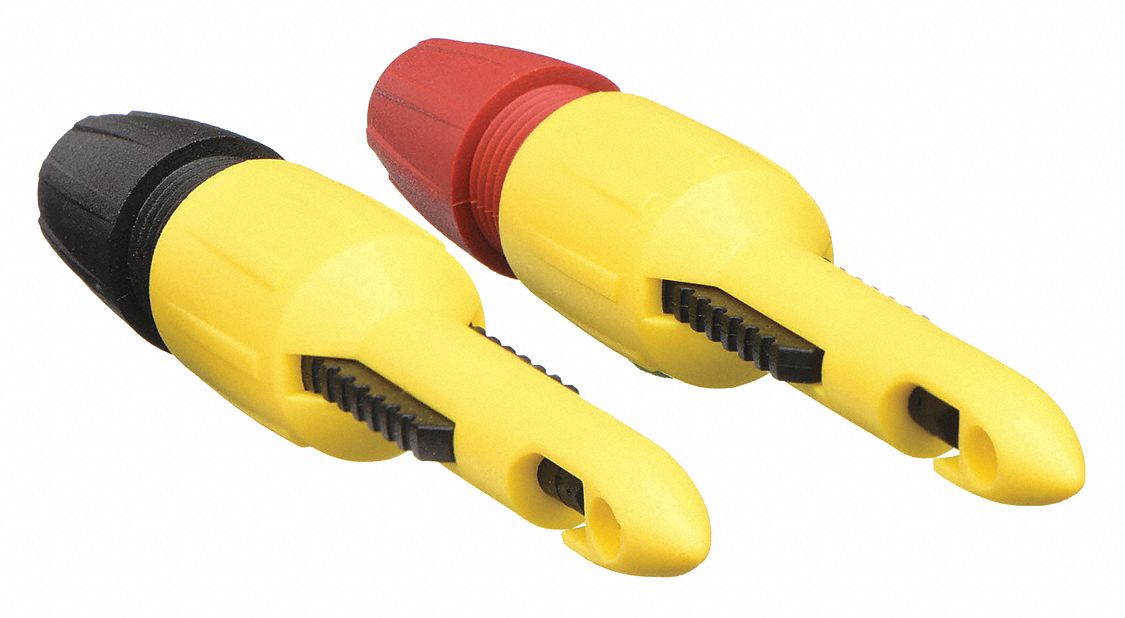

Pomona 6405 Insulation-Piercing Test Clip

Pomona 6405 Insulation-Piercing Test Clip, 4 in, Black/Red/Yellow, 10 A, 70V

UPC: 095969110471 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: China | Shipping Weight: 0.15 lbs

$72.93 - $72.93
$72.93
$72.93 - $72.93
$72.93

Test Clip, For Use With 0.16 in (4mm) Banana Plug Test Leads, Maximum Current 10 A, Maximum Voltage 70 V, Color Black/Red/Yellow, Hand Held Voltage 33V AC/70V DC, Features Make Contact with Insulated Wires without Cutting or Stripping Insulation, Pierces Insulation on Wires from 22 to 14 AWG, Spring Loaded Double V Clamp Holds Wire Centered for Piercing Needle, Length 4 in

Color Black, Red
Includes (2) Set of Red and Black Jacks
Features High Visibility Bright Yellow Body, Attach to Test Leads, Double V Block Centers Wire
For Use With Test Clip and Probe Multimeter Test Leads with 4mm Sheathed Banana Plugs
Standards RoHS
Hand Held Voltage 33V AC/70V DC
Contact Material Stainless Steel
Spring Material Steel
Tip Material Hardened Stainless Steel
Maximum Current 10 A
Insulation Material Nylon
Maximum Voltage 33/70V
Jaw Opening 0.18 in
Test End Termination Piercing Clip
Number of Modular Test Clips 2
Country of Origin China
