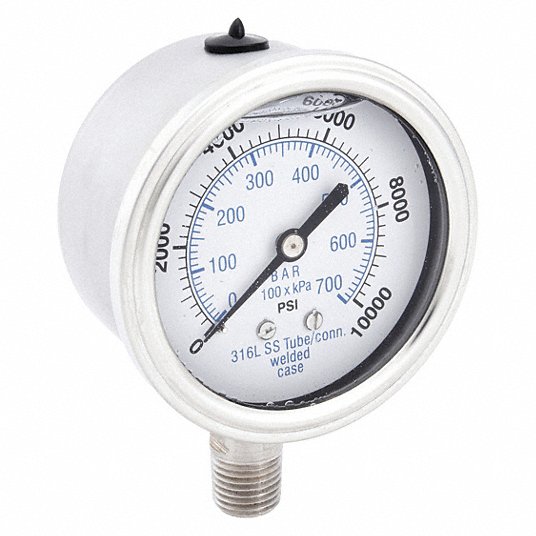

Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 10,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
| Accuracy |
+/-2-1-2% |
| Process Connection Location |
Bottom |
| Process Connection Type |
NPT |
| Application |
General Purpose |
| Gauge Case Material |
Stainless Steel |
| Series |
300 |
| Lens Material |
Polycarbonate |
| Primary Pressure Range |
0 to 10,000 |
| Primary Scale Units |
psi |
| IP/NEMA Rating |
Not Rated |
| Liquid-Filled Case |
Yes |
| Hazardous Location Rating |
Not Rated |
| Panel-Mountable |
No |
| Blowout Safety Back |
No |
| Gauge Filled With |
Glycerin |
| Graduations |
2000 psi |
| Gauge Primary Range Numbered Graduations |
2000 |
| Case Color |
Metallic |
| Includes |
Vent Plug |
| Gauge Application |
In Applications Where Vibration or Pulsation is Present |
| Gauge Primary Range Smallest Graduation |
200 |
| Calibration Certificate Included |
No |
| For Use With |
Media Compatible with 316L Stainless Steel, Medium to High Pressures |
| Smallest Graduation |
200 psi |
| Case Material |
Stainless Steel |
| Socket Material |
316 Stainless Steel |
| Connection Type |
MNPT |
| Standards |
ASME |
| Wetted Materials |
Stainless Steel |
| Cleaned for Oxygen Service |
No |
| Accuracy Grade |
ASME B40.100 Grade A |
| Field Fillable |
No |
| Dial Color |
White |
| Freeze Resistant Movement |
No |
| Includes Calibration Certificate |
No |
| Non-Sparking |
No |
| Dial Face Material |
Stainless Steel |
| Primary Scale Numeric Increments |
2,000 |
| Process Connection Gender |
Male |
| Includes Mounting Hardware |
No |
| Scale Type |
Dual |
| Dry Dampening Feature |
None |
| Secondary Pressure Range |
0 to 689 |
| Includes Vent Plug |
Yes |
| Sensor Material |
316 Stainless Steel |
| Gauge Case Liquid |
Glycerin |
| Removable Bezel |
No |
| Vibration Resistance |
Liquid-Filled |
| Pointer Color |
Black |
| Pressure Gauge Type |
Industrial Pressure Gauge |
| Bezel Material |
Stainless Steel |
| Pressure Range Type |
Pressure |
| Bezel Mounting Type |
Fixed |
| Accuracy Scale |
Mid-Scale |
| Secondary Scale Units |
bar |
| Pointer Material |
Aluminum |
| Ambient Operating Temperature Range |
30 to 160 °F |
| Primary Scale Minor Graduations |
200 |
| Maximum Pressure |
10,000 |
| Operating Temperature Range |
30 to 160 °F |
| Secondary Scale Pressure Measurement - Maximum |
689 bar |
| Secondary Scale Vacuum Measurement - Minimum |
0 bar |
| Primary Scale Vacuum Measurement - Minimum |
0 psi |
| Compatible with Series |
PRO-300 |
| Process Media Temperature - Minimum |
32 °F |
| Operating Temperature - Maximum |
160 °F |
| Primary Scale Pressure Measurement - Minimum |
0 psi |
| Compatible with Brand |
Universal |
| Operating Temperature - Minimum |
30 °F |
| Case Liquid |
Glycerin |
| Primary Scale Vacuum Measurement - Maximum |
10,000 psi |
| Secondary Scale Pressure Measurement - Minimum |
0 bar |
| NEMA Enclosure Rating |
No Enclosure |
| Secondary Scale Vacuum Measurement - Maximum |
700 bar |
| Process Media Temperature - Maximum |
160 °F |
| Primary Scale Pressure Measurement - Maximum |
10,000 psi |
