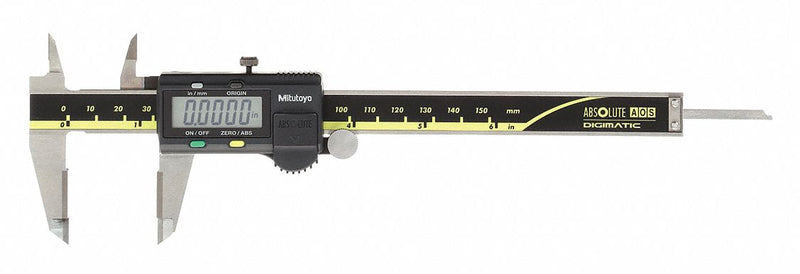

Mitutoyo 500-160-32 Carbide Jaw Digital Caliper: 0 in to 6 in /0 mm to 150 mm, Inch/Metric, Cabled

Mitutoyo 500-160-32 Carbide Jaw Digital Caliper: 0 in to 6 in /0 mm to 150 mm, Inch/Metric, Cabled

UPC: 603908409502 | Harmonization / Schedule B : 9017.30.4000

Country of Origin: Japan | Shipping Weight: 0.95 lbs

$463.06 - $463.06
$463.06
$463.06 - $463.06
$463.06

The MITUTOYO 500-160-30 Absolute Digital Caliper is a high-quality tool that will meet the demands of your job. The carbide jaw digital caliper can measure from 0 in to 6 in, and has a resolution of 0.0005 in/0.01 mm. This stainless steel digital caliper has an accuracy of +/-0.001 inches, with a measuring range of 0 to 150mm or 0 to 6in. It also features origin set, zero, data output, inch/mm, low voltage and counting value composition error functions. The MITUTOYO Carbide Jaw Digital Caliper is the perfect companion for your next project.

Caliper Material Stainless Steel
Caliper Range 0-6 in /0-150mm
Accuracy +/-0.0010 in
SPC Output No
Resolution 0.0005 in/0.01 mm
IP Rating Not Rated
Absolute Positioning Yes
Features Rolling Thumb Wheel, Control Buttons On Face, Zero, On/Off and Inch/mm, Absolute Scales, Carbide Jaws
Long Form Calibration Certificate No
Caliper Grouping Digital Caliper
Graduations - Lower Scale 0 in
Case Type Plastic Case
Jaw Actuation Type Thumb Wheel
Dust Resistant Yes
Maximum Measurement - Inch 6 in
Coolant Resistant No
Left-Handed Operation No
Includes Battery Yes
Jaw Shape Standard
Included Certification Certificate of Inspection
Minimum Measurement - Fractional Inch 0 in
With Locking Nut Yes
Measurements 4-Way
Includes Case Yes
Maximum Measurement - mm 150 mm
Display Type LCD
Jaw Material Carbide-Tipped
Functions Origin-Set, Zero, Data Output, Inch/mm, Alarm: Low Voltage, Counting Value Composition Error
Repeatability 0.0005 in/0.01 mm
Range 0 in to 6 in, 0 to 150 mm
Water Resistant No
Graduations - Upper Scale 6 in
Linear Encoder Type Electrostatic Capacitance
Minimum Measurement - Inch 0 in
Minimum Measurement - mm 0 mm
Measures Step Yes
Inches Measured - Maximum 6 in
Data Output Type Cabled
Battery Type SR44
Millimeters Measured - Maximum 150 mm
Inches Measured - Minimum 0 in
Measurement Type Depth, Inside, Outside, Step
Millimeters Measured - Minimum 0 mm
Product Type Digital Caliper
Country of Origin Japan
