| Item |

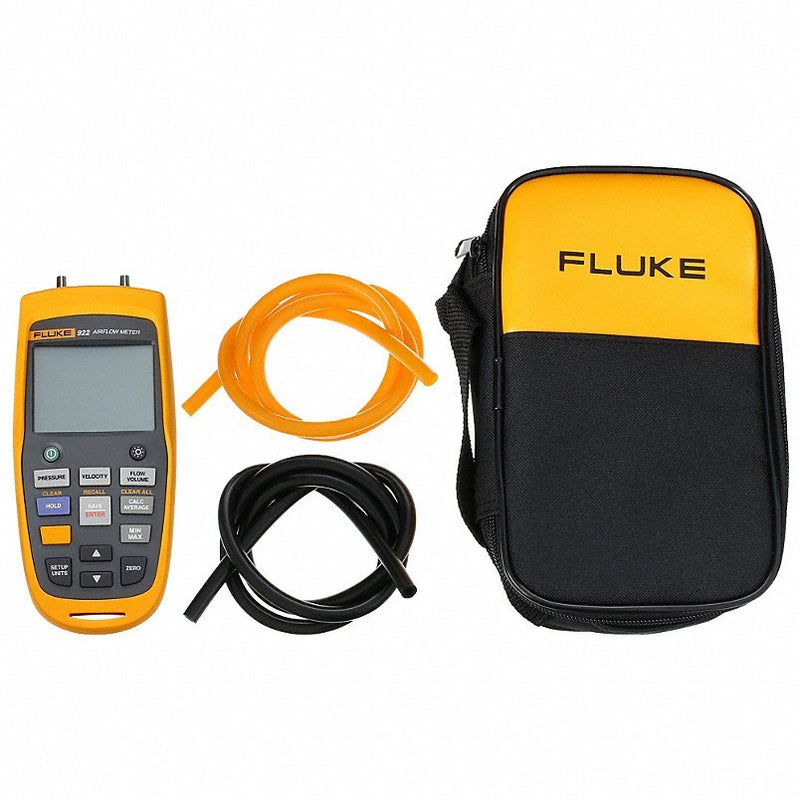

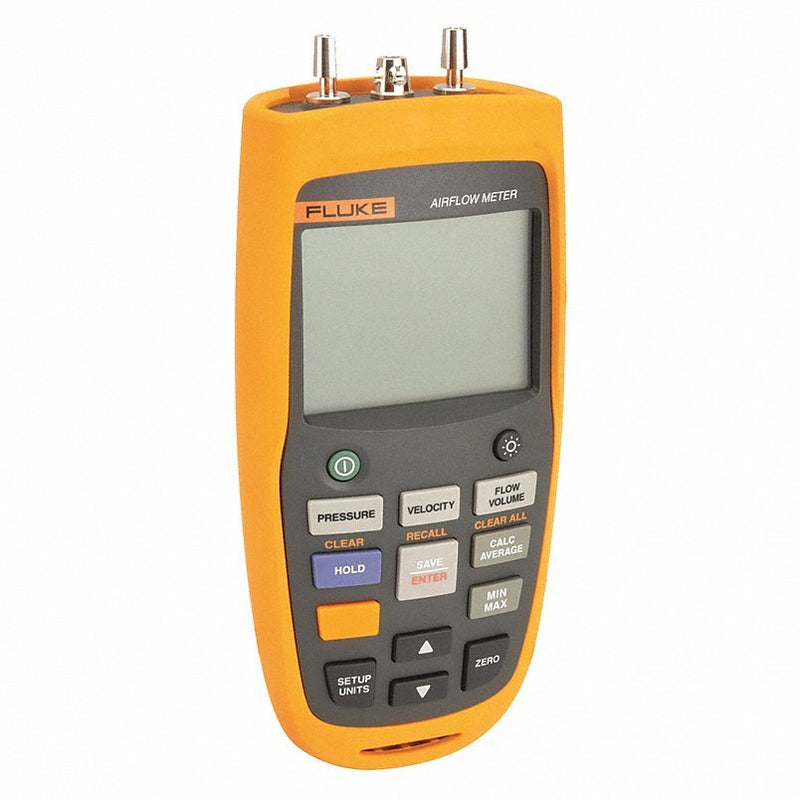

Handheld Digital Manometer |
| For Use With |
Air Or Non-Corrosive Dry Gases |
| Pressure Range |
0 to 16 in wc |
| Accuracy |
+/-1% |
| Operating Temp. Range |
32 Degrees to 122 Degrees F |
| Operating Range |
0 to 4 kPa |
| Display |
5 digit LCD |
| Max. Pressure |
0.6 psi (0.04 bar) |
| Connection Type |
Fit 1/8 or 3/16 in ID Tubing |
| Velocity |
250 to 16,000 fpm |
| Includes |
Battery, Soft Case and Instructions, Tubing |
| Battery Type |
AA |
| Resolution |
1 fpm |
| Storage Temp. Range |
-40 Degrees to 140 Degrees F |
| Maximum Operating Temperature |
122 Degrees F |
| Storage Temperature Range |
-40 Degrees to 140 Degrees F |
| Batteries Included |
Yes |
| Number of Connections |
2 |
| Manometer Type |
Digital Manometer & Airflow Meter |
| Minimum Air Volume |
0 cfm, 0 L/sec, 0 cu m/hr |
| Auto Power Off |
Yes |
| Batteries Required |
Yes |
| Air Volume Resolution |
1 cu m/hr, 1 cfm, 1 L/sec |
| Pressure Units |
cfm, fpm, Pascals |
| Type of Pressure |
Differential, Static |
| Environment Maximum Temperature |
50 Degrees C, 122 Degrees F |
| Air Velocity Range |
250 fpm to 16,000 fpm |
| Minimum Air Velocity |
1 mps, 250 fpm |
| Maximum Air Volume |
99,999 cu m/hr, 99,999 cfm, 99,999 L/sec |
| Air Volume Range |
1 mps to 99,999 cu m/hr, 1 mps to 99,999 L/sec, 250 fpm to 99,999 cfm, 250 fpm to 99,999 cu m/hr, 250 fpm to 99,999 L/sec |
| Connections |
1/4 in Hose Barb |
| Includes Batteries |
Yes |
| Wireless Connectivity |
No |
| Maximum Air Velocity |
16,000 fpm |
| Digital Display Features |
5 Digit LCD |
| Environment Temperature Accuracy |
+/- 1 % + 2 Degrees C, +/- 1 % + 4 Degrees F |
| Temperature Units |
Degrees C, Degrees F |
| Maximum Operating Pressure |
10 psi |
| Environment Minimum Temperature |
32 Degrees F, 0 Degrees C |
| Data Hold |
Yes |
| Air Velocity Resolution |
0.001 mps, 1 fpm |
| Number of Pressures Measured |
Dual |
| Standards |
EN61326-1, MIL-PREF-28800F, Class 3 |
| Air Velocity Units |
fpm, mps |
| Enclosure Rating |
IP40 |
| Minimum Pressure |
-16 in wc |
| Air Volume Units |
cfm, cu m/hr, L/sec |
| NIST Traceable Certificate |
No |
| Air Velocity Accuracy |
+/- 2.5 % of reading at 10 mps, +/- 2.5 % of reading at 2000 fpm |
| IP Rating |
IP40 |
| Application |
Air |
| Environment Temperature Resolution |
0.1 Degrees F, 0.1 Degrees C |
| Process Connection Type |
Hose Barb |
| Maximum Pressure |
16 in wc |
| Min/Max Capture |
Yes |
| Minimum Operating Temperature |
32 Degrees F |
| Operating Pressure Range |
-4 to 4 kPa |
| Package Quantity |
1 |
